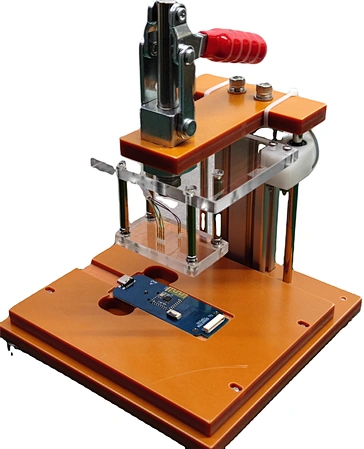

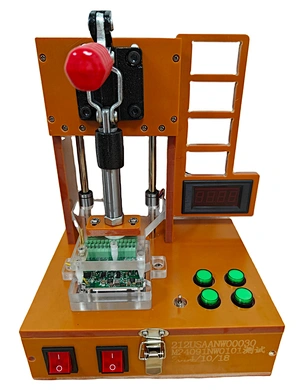

Customized Pcb test fixture Function jigs motherboard electronic RF ICT FCT equipment Wholesale test jigs

RF554

minimum order

1 piece

Quantity:

$100.00 - $350.00 / piece

Contact Now

add to cart

CNC Machining or Not:Cnc Machining
Type:Broaching, Laser Machining, Other Machining Services, Rapid Prototyping
Material Capabilities:Aluminum, Hardened Metals, Precious Metals, Steel Alloys
Micro Machining or Not:Micro Machining
Place of Origin:Guangdong, China
Brand Name:Newmeto

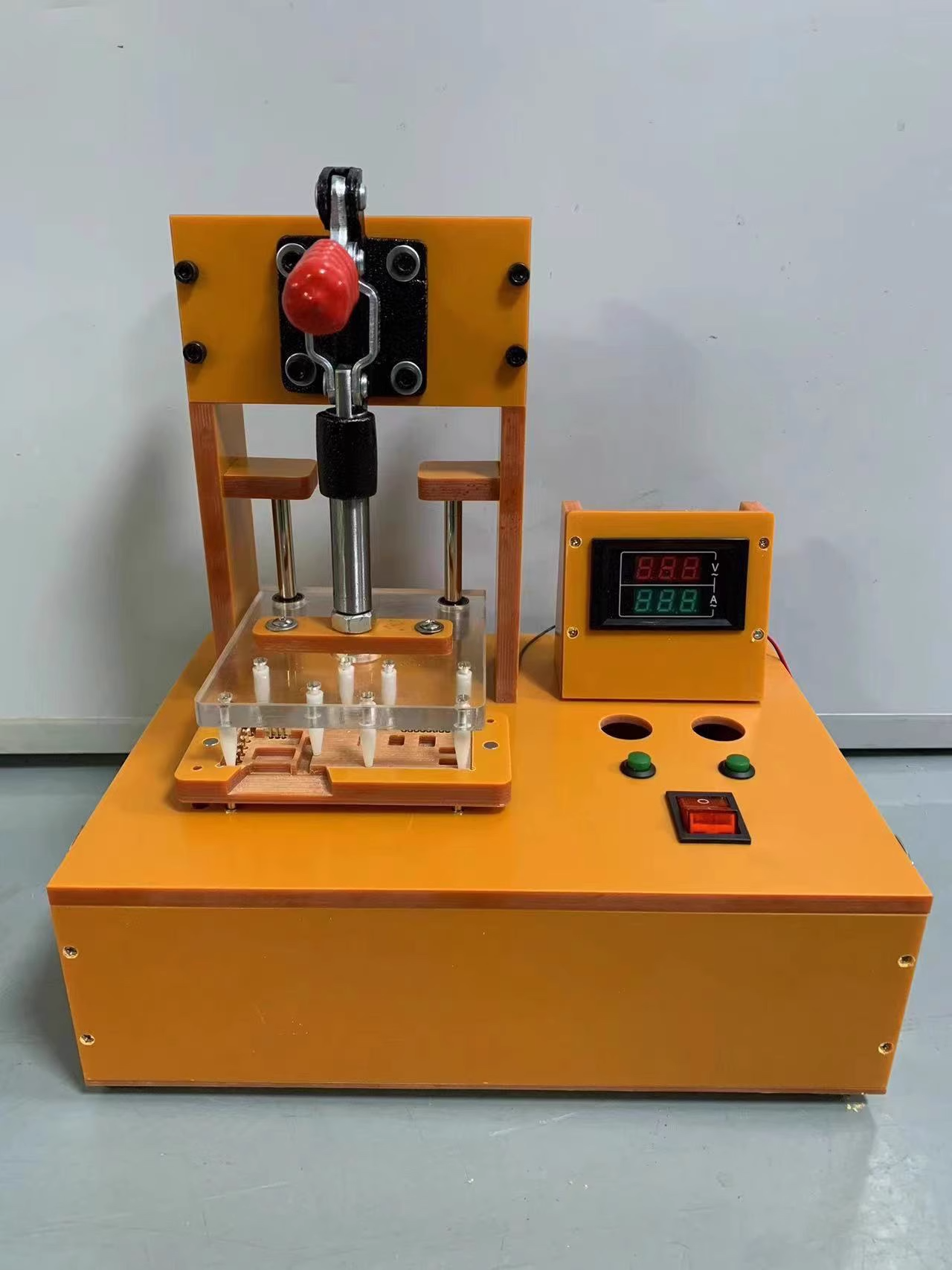

Product name:PCB test fixture
Surface treatment:Customer's Request
Service:One-Stop Service
Equipment:CNC Machining Centres
Application:Electronic,automatic,industrial
MOQ:1 Piece
Certification:ISO9001:2015
Logo:Accept Custom Logo
File Format:gerbers/DXF/CAD
QC Control:100% QC Steps Inspection

Product Description

The products ideal for complex and Multi-Board test configurations in functional and in-circuit test applications. These fixtures utilize a 2 stage lid closing process involving a cam system to easily provide even vertical compression force across a high number of pins.

Design PCB Test Fixtures to Your Needs

Our robust and reliable designs come in a variety of sizes and footprints to suit your PCB scale and test application. Fixtures can accommodate standard PCB footprints such as Raspberry Pi and other single-board computers and fully custom PCBs. Most designs offer a bed of nails interface, but other interfaces are available. We specialize in designing and manufacturing custom test fixtures to meet unique test challenges.

Company Information

New meto Industrial (Shenzhen) Co., Ltd. was established in 2015.Main Engage in production Various electronic test fixtures, including BGA test fixtures, PCBA test fixtures,etc.

Through advanced manufacturing technology and high-quality materials, New Mitou fixtures ensure stable test performance and accurate test results, providing customers with reliable test support.

All engineers and technicians have over 10years related experience. Our products are exported to more than 30 countries and regions around the world,Xinmitu are certificated by ISO 9001 - 2015. and strictly standardized production, the quality of products has a strict craftsman's pursuit.

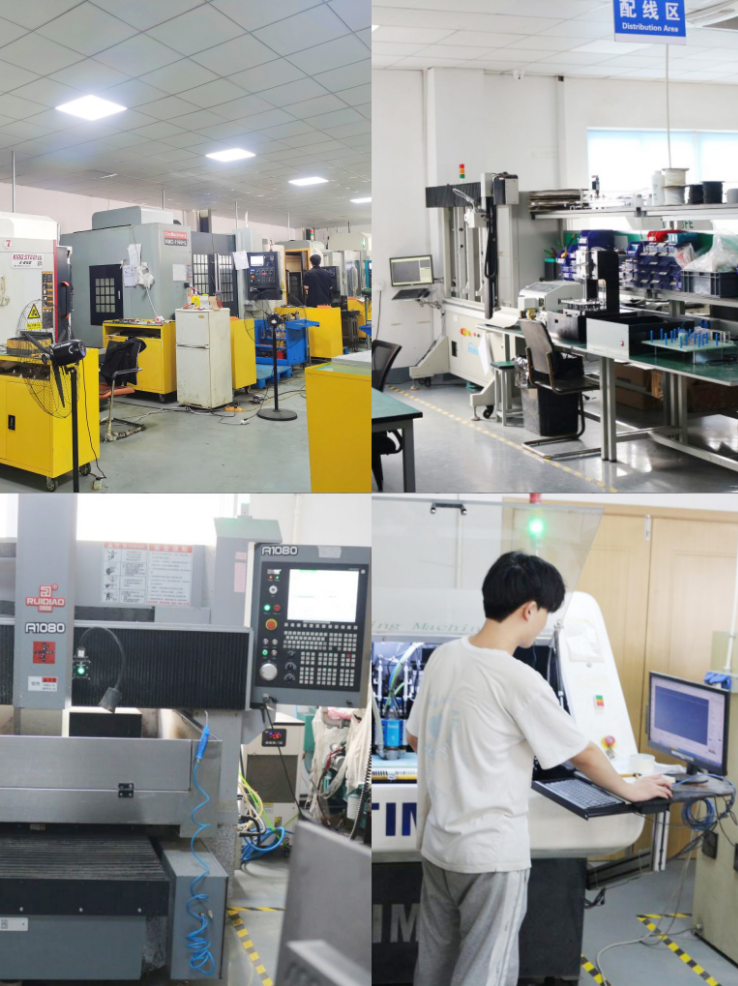

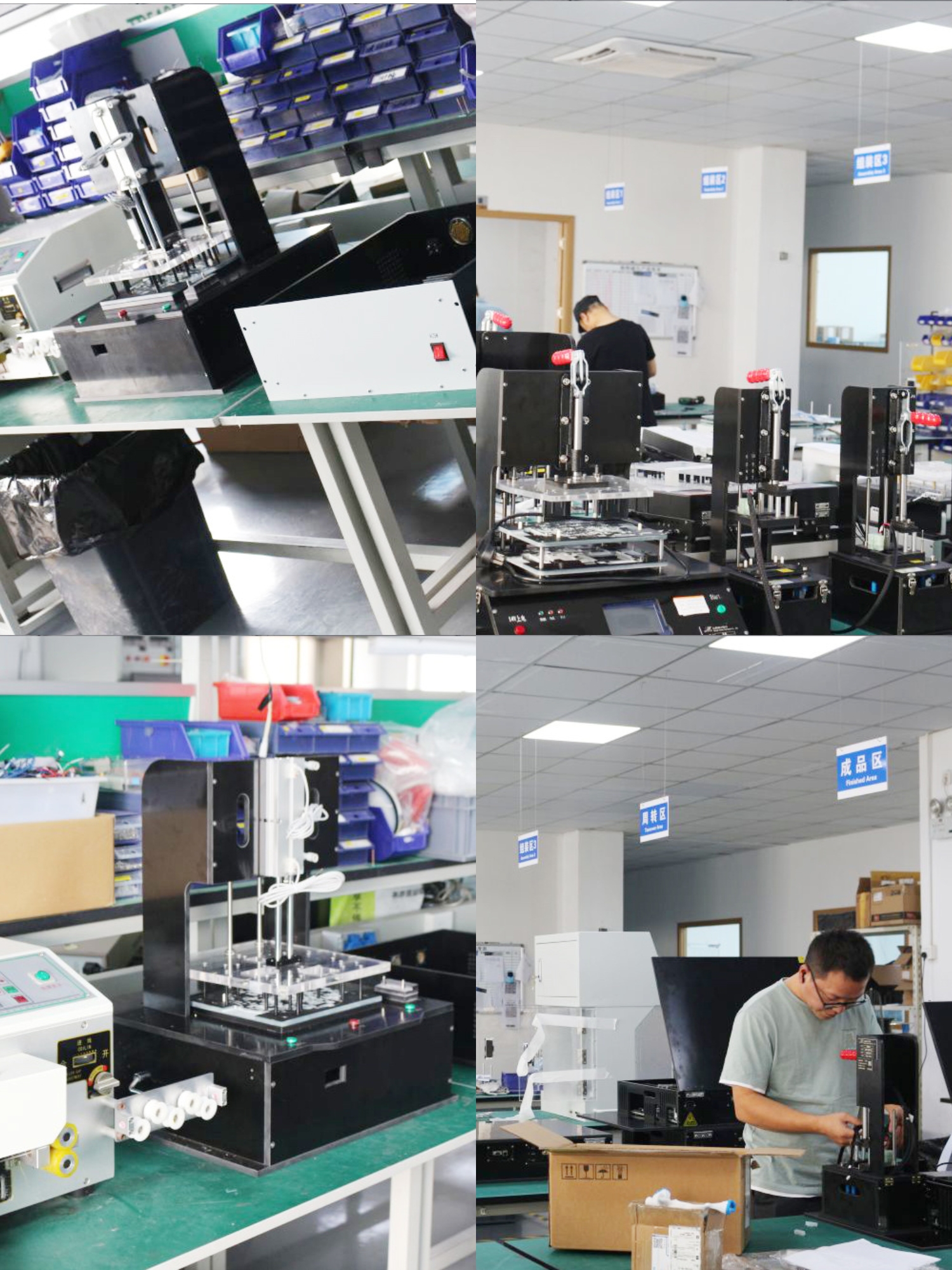

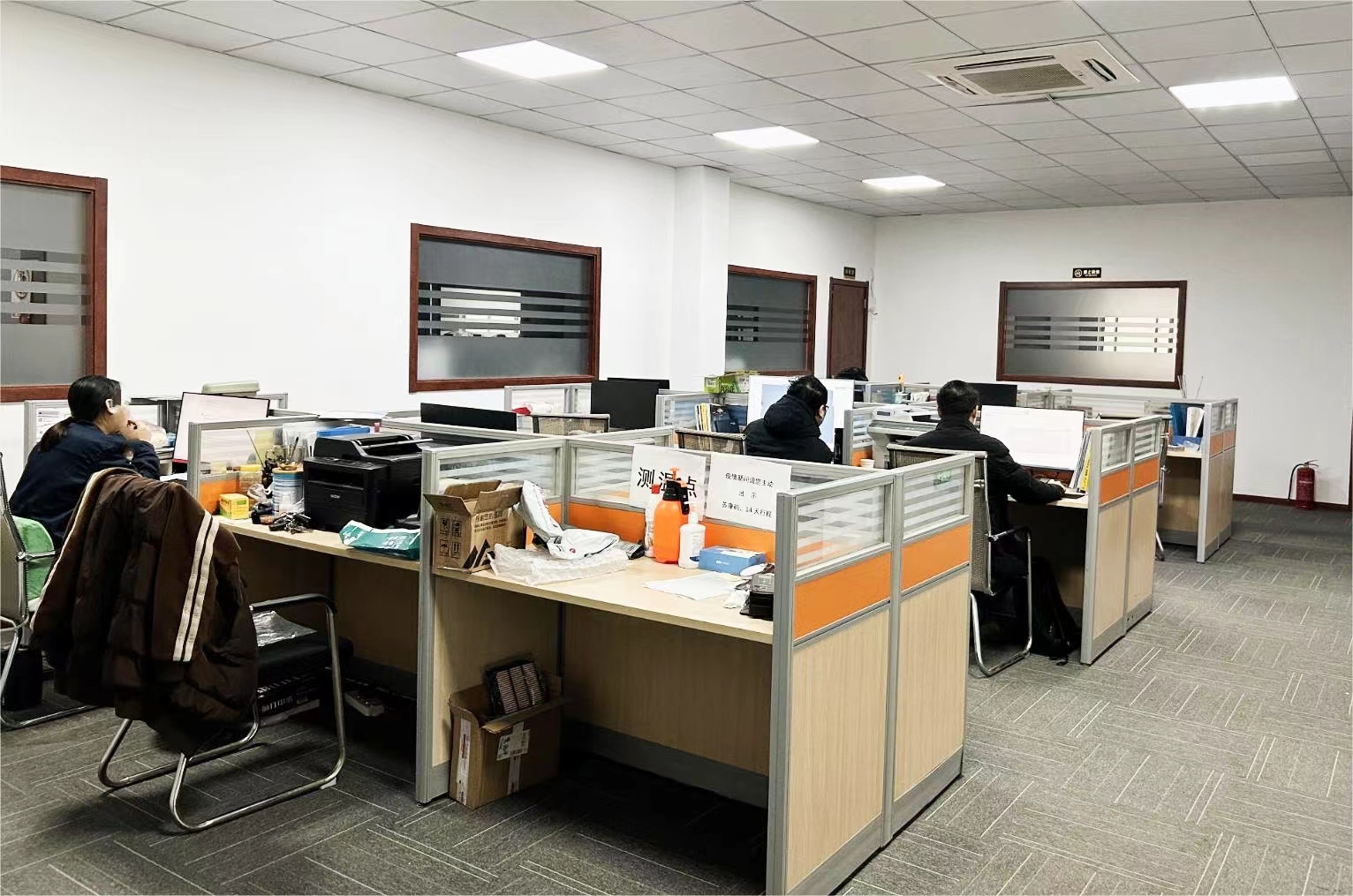

Our Factory

Our Services

Pre-sales service:

Customer demand analysis —— Understand your production process, workpiece material, machining accuracy requirements to ensure that the clamp exactly meets your needs.

Fast quote —— We promise to respond within 24 hours of receiving your enquiry with a detailed product quotation and delivery time

Virtual Demonstration ——Using advanced 3D modeling software, we can provide a virtual demonstration of the clamp, giving you a visual understanding of how it works

After-sale service

Lifelong technical support—— Whenever you encounter any technical problems during use, our after-sales team will respond quickly to provide solutions.

Quality Assurance—— We offer an industry-leading warranty period and rigorous quality testing of all products to ensure that every clamp meets the highest standards.

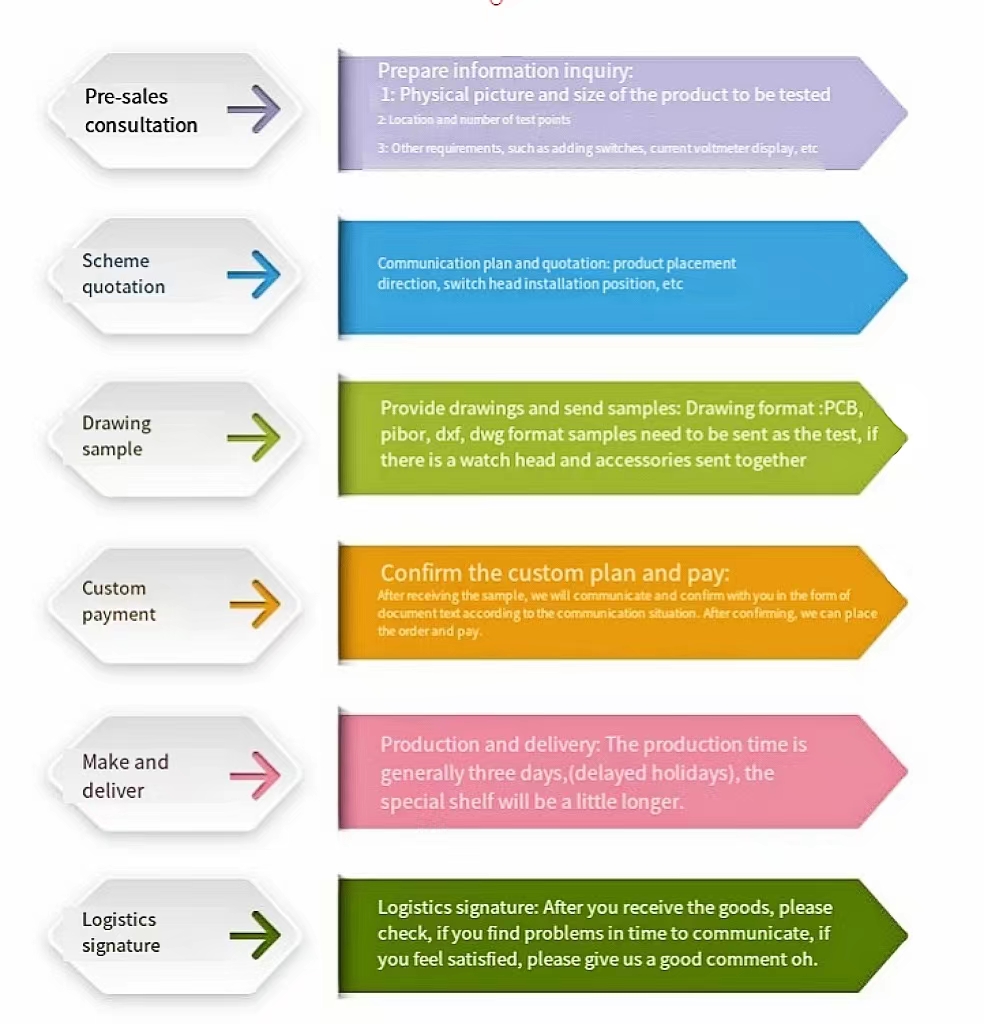

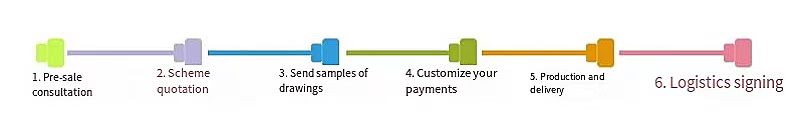

How to customize

FAQ

1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent , please email us or contact us in other ways so that we can offer you a quote asap.

2.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 3-7 days for small quantity, and about 10 days for large quantity.

3.What is your payment term?
-T/T,Western Union,and Paypal.This is negotiable.

4.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).

5.How do you make our business long-term and good relationship?
- We keep good quality and competitive price to ensure our customers benefit ;
-We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
