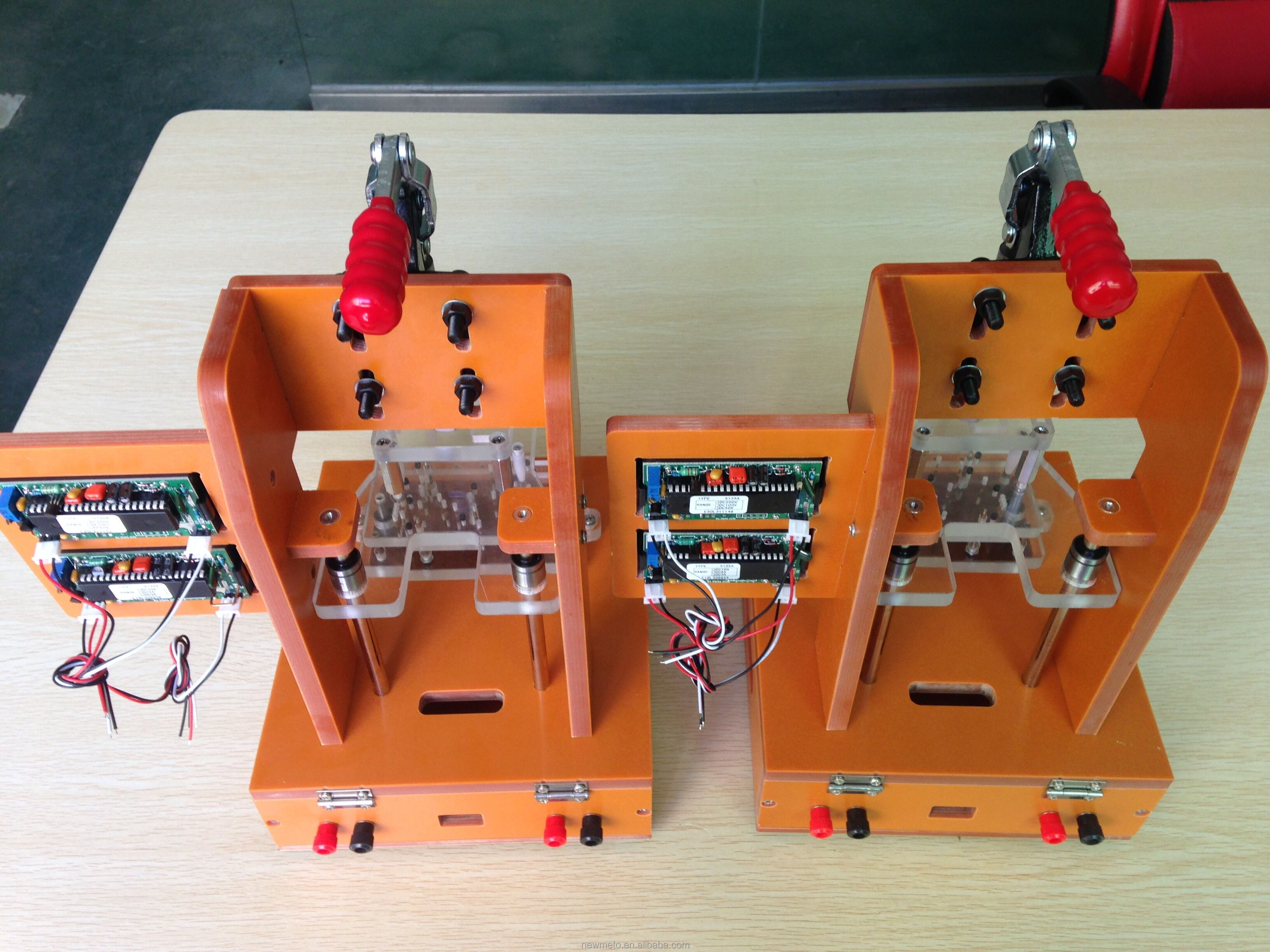

High quality custom manual precise pcb test fixture function electron industry Jigs ic design

Newmeto 110

minimum order

1 piece

Quantity:

$300.00 - $300.00 / piece

Contact Now

add to cart

CNC Machining or Not:Cnc Machining
Type:DRILLING, Laser Machining, Milling
Material Capabilities:Aluminum, Brass, Steel Alloys
Micro Machining or Not:Micro Machining
Place of Origin:Guangdong, China
Brand Name:New meto
Product name:pcb test fixture
Material:Aluminum Alloy ,sheet metal box
Application:PCB/PCBA/FPC testing
Keyword:electron industry Jigs
Size:Customized Sizes Acceptable
Drawing Format:2D/(PDF/CAD)3D(IGES/STEP)
OEM/ODM:Accecpted
Certification:ISO9000 IATF16949
Logo:Accept Custom Logo
Delivery Time:3-7 Days

Product Description

The products ideal for complex and Multi-Board test configurations in functional and in-circuit test applications. These fixtures utilize a 2 stage lid closing process involving a cam system to easily provide even vertical compression force across a high number of pins.

Design PCB Test Fixtures to Your Needs

Our robust and reliable designs come in a variety of sizes and footprints to suit your PCB scale and test application. Fixtures can accommodate standard PCB footprints such as Raspberry Pi and other single-board computers and fully custom PCBs. Most designs offer a bed of nails interface, but other interfaces are available. We specialize in designing and manufacturing custom test fixtures to meet unique test challenges.

Other Information
Applicable models	Suitable for functional testing of various electronic products
Buyer notice	This product is a non-standard customized product, the price marked on the page is a non-customized price, if you need to consult a customized quotation, you need to provide detailed customized requirements
Inspection Solutions :	Online tracking
Dimensions	L220W220H320mm
Buyers requirements	This product is a non-standard customized product, the page annotated price is not customized price, if you need to consult customized quotation, you need to provide detailed customization requirements!
Packaging Details	Inner package:PE film/Shrink film/Aluminum foil/EPE film or as the request of our customer .
Packaging Details	Outer package:Corrugated carton/wooden carton or as the request of our customer

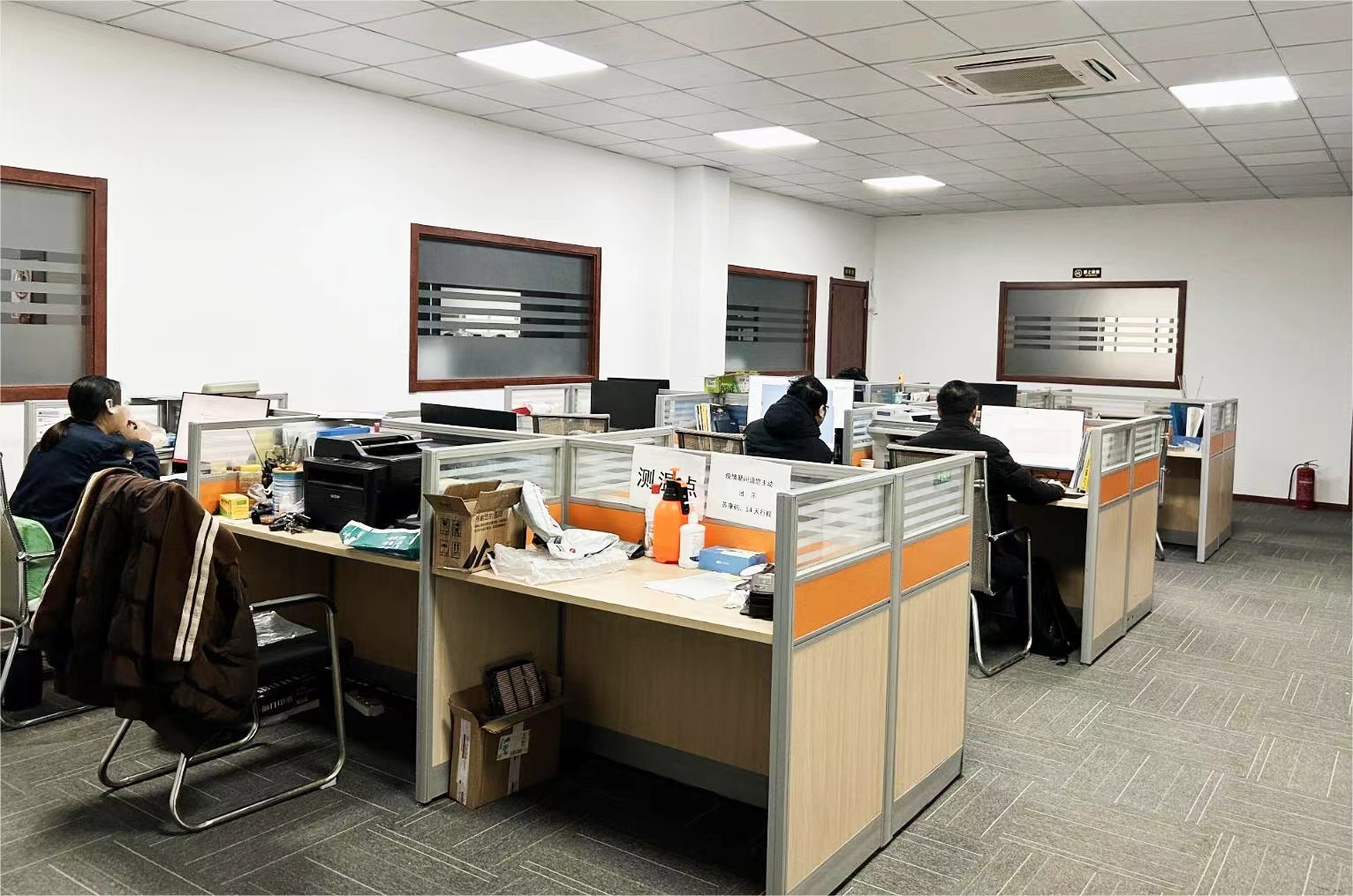

Company Information

New meto Industrial (Shenzhen) Co., Ltd. was established in 2015.Main Engage in production Various electronic test fixtures, including BGA test fixtures, PCBA test fixtures,etc.

Through advanced manufacturing technology and high-quality materials, New Mitou fixtures ensure stable test performance and accurate test results, providing customers with reliable test support.

All engineers and technicians have over 10years related experience. Our products are exported to more than 30 countries and regions around the world,Xinmitu are certificated by ISO 9001 - 2015. and strictly standardized production, the quality of products has a strict craftsman's pursuit.

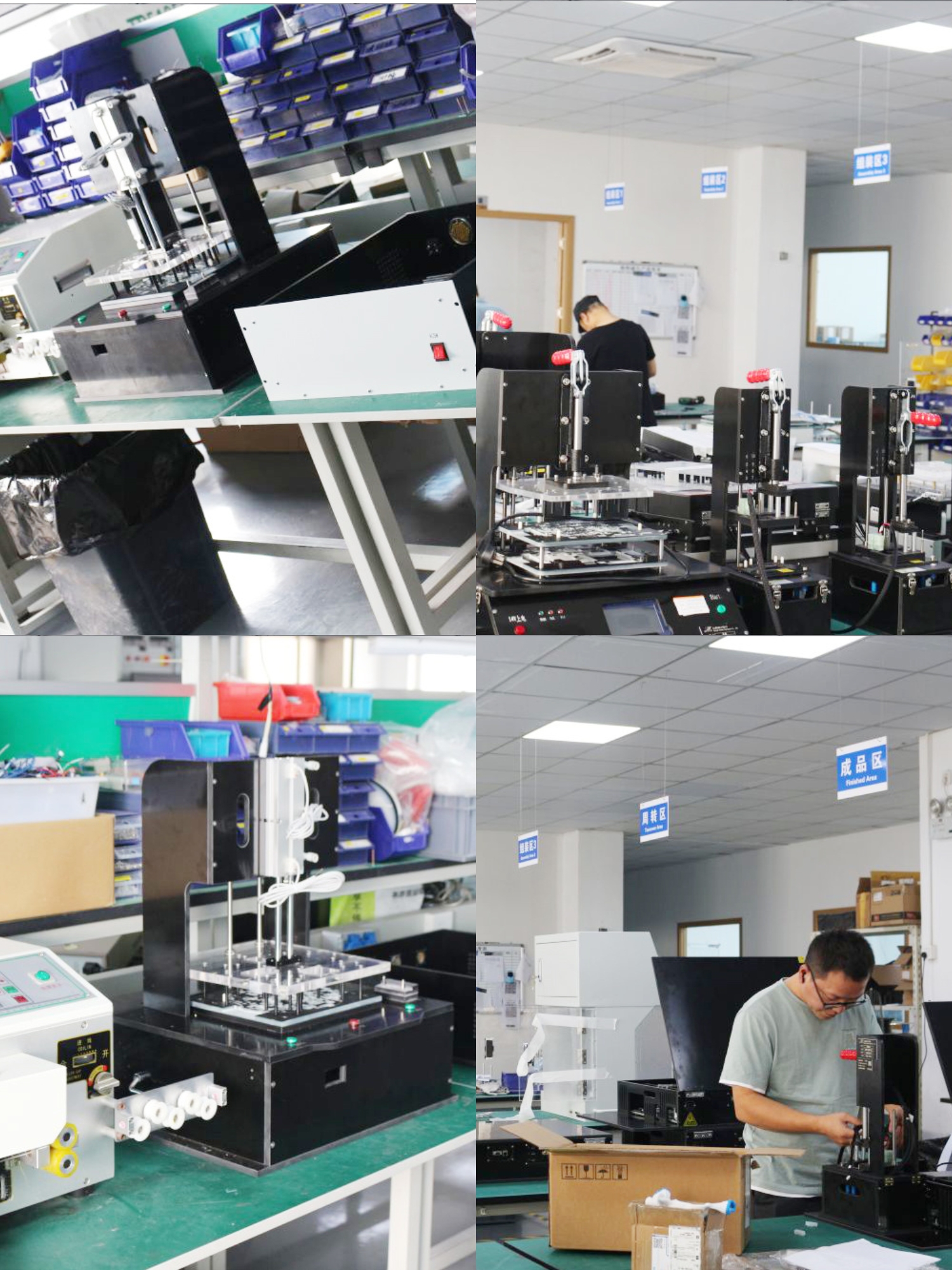

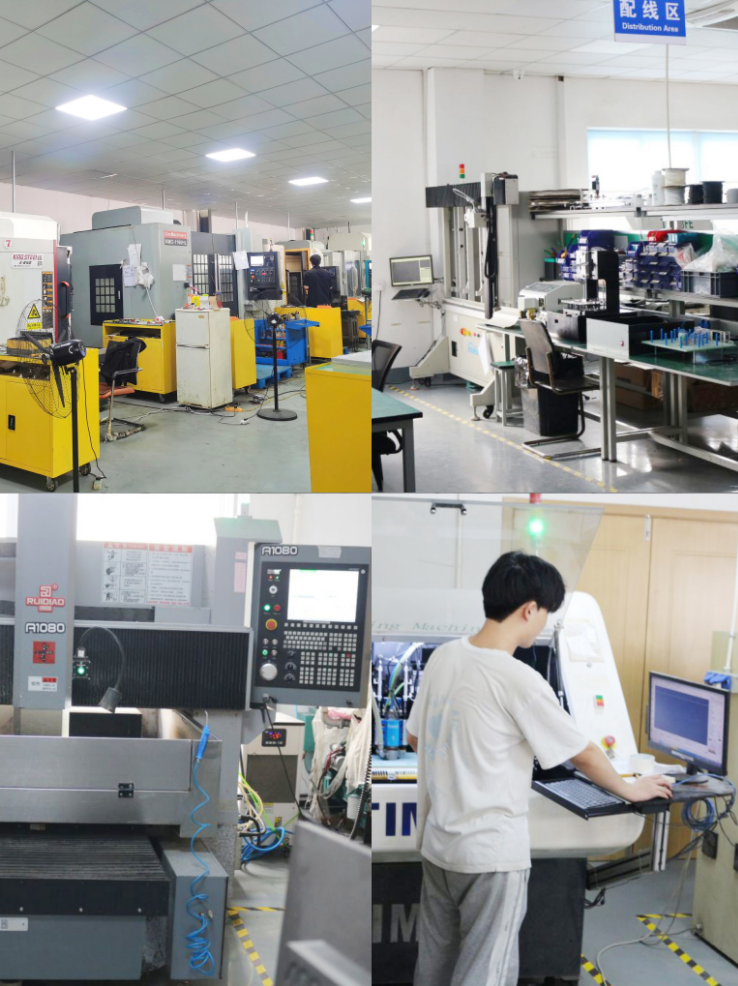

Our Factory

Packaging & Shipping

FAQ

1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent , please email us or contact us in other ways so that we can offer you a quote asap.

2.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 3-7 days for small quantity, and about 10 days for large quantity.

3.What is your payment term?
-T/T,Western Union,and Paypal.This is negotiable.

4.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).

5.How do you make our business long-term and good relationship?
- We keep good quality and competitive price to ensure our customers benefit ;
-We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
