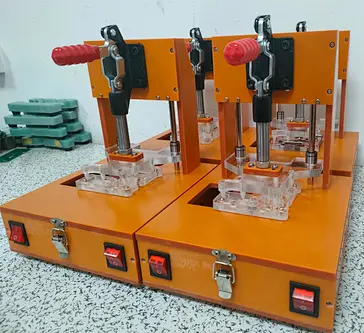

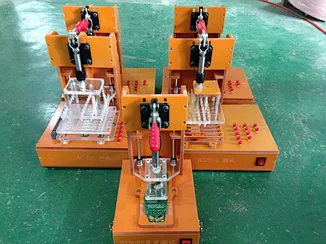

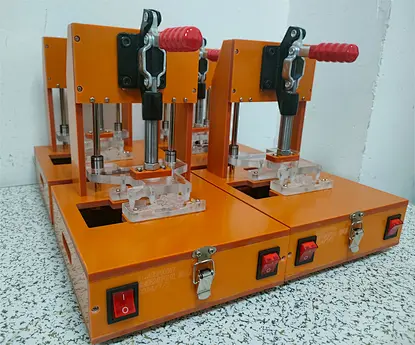

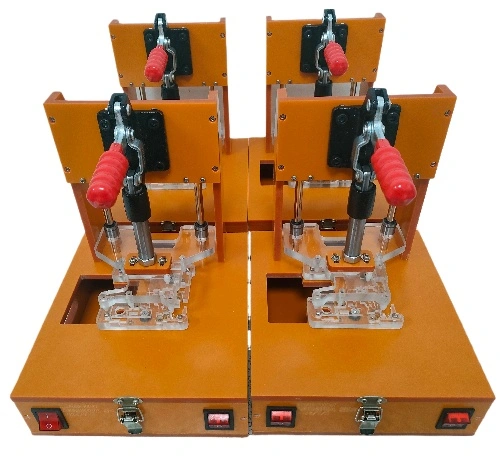

Motherboard Function Test Jig for Consumer electronics testing Mobile phone motherboard smart watch motherboard computer motherboard

China high quality Motherboard Function Test Jig function PCBA

minimum order
1 piece
Quantity:
$100.00 - $100.00 / piece
Contact Now
add to cart
  • CNC Machining or Not:Cnc Machining
  • Type:Broaching, Laser Machining, Milling
  • Material Capabilities:Aluminum, Hardened Metals
  • Micro Machining or Not:Micro Machining
  • Place of Origin:Guangdong, China
  • Brand Name:New meto
  • Product name:PCBA test jig
  • Service:One-Stop Service
  • Equipment:CNC Machining Centres
  • Application:Consumer electronics testing
  • MOQ:1 Pcs
  • Logo:Accept Custom Logo
  • Certification:ISO9001:2015
  • QC Control:100% QC Steps Inspection
  • Packing:Wooden Case
  • Lead time:3-7 Working Days

Product Description





Product application:

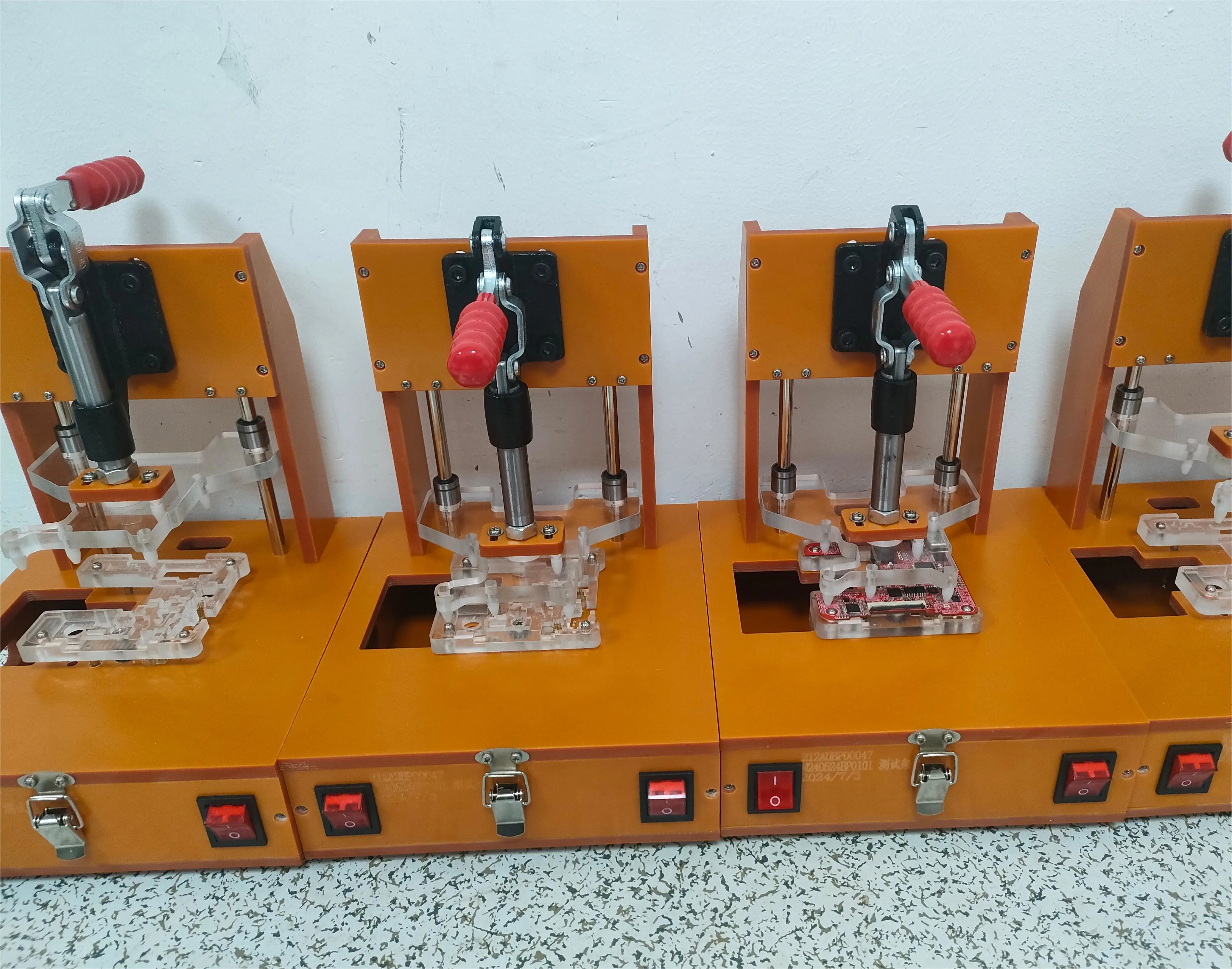

This functional testing device is a universal electrical testing platform designed for smartphone products. Its main functions include firmware program burning and verification based on the finished phone motherboard, serial communication testing, as well as simulating the charging and discharging status of lithium batteries, testing PCBA battery management circuits, etc. It can also be used for testing other consumer electronics products, such as mobile phone motherboards, smartwatch motherboards, computer motherboards, etc.

Product features:
1: Traditional gripper fixtures, manual testing, low-cost production.
2: The structure can be customized according to the testing project.










Company Information


New meto Industrial (Shenzhen) Co., Ltd. was established in 2015.Main Engage in production Various electronic test fixtures, including BGA test fixtures, PCBA test fixtures,etc.

Through advanced manufacturing technology and high-quality materials, New Mitou fixtures ensure stable test performance and accurate test results, providing customers with reliable test support.



All engineers and technicians have over 10years related experience. Our products are exported to more than 30 countries and regions around the world,Xinmitu are certificated by ISO 9001 - 2015. and strictly standardized production, the quality of products has a strict craftsman's pursuit.

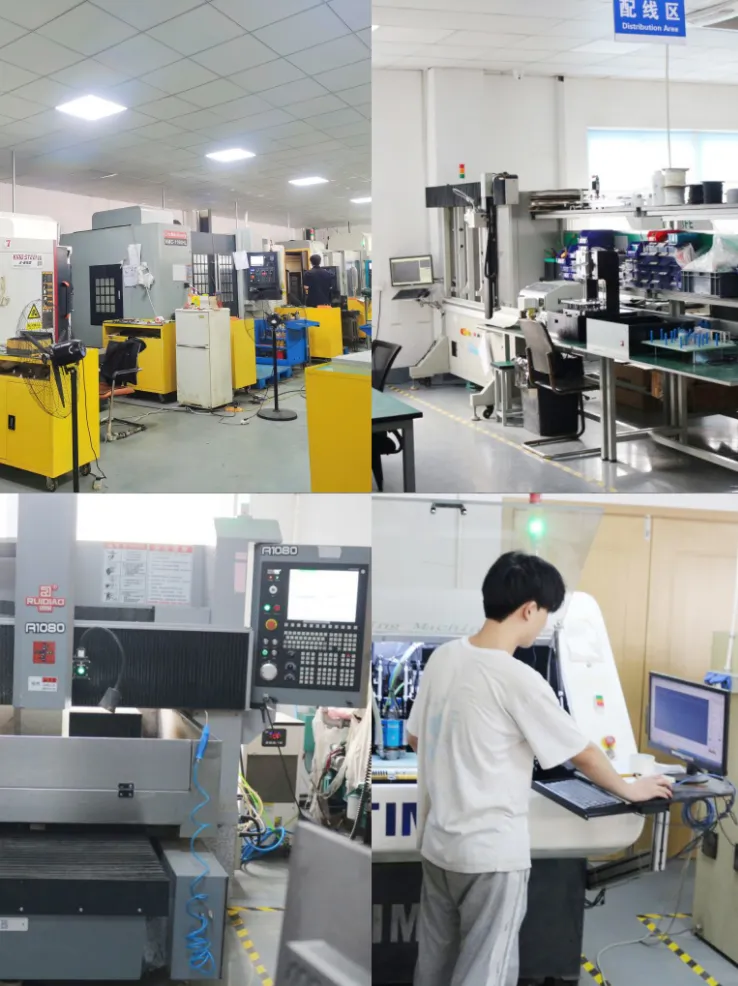

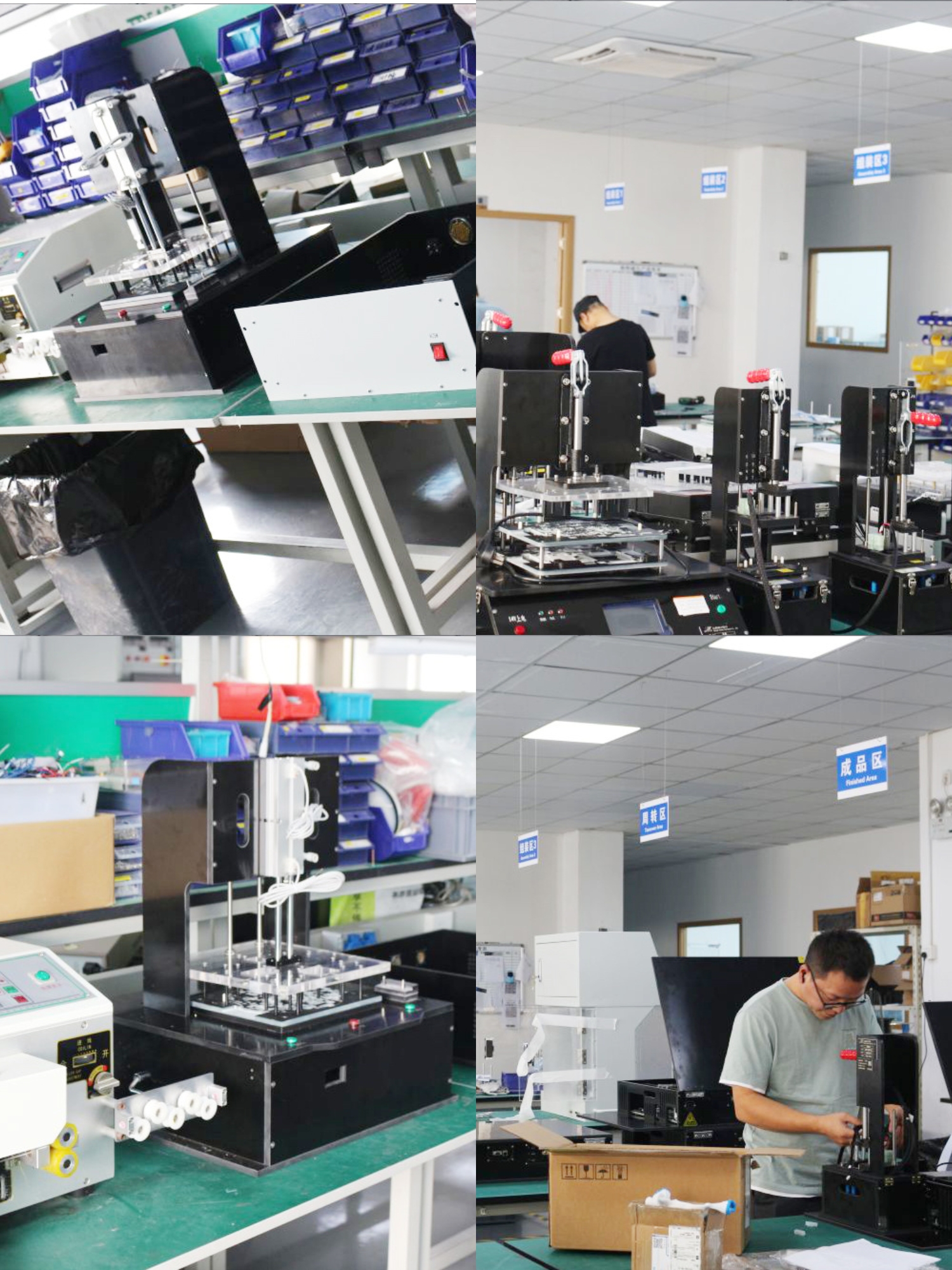

Our Factory







Our Services


Pre-sales service:



  • Customer demand analysis —— Understand your production process, workpiece material, machining accuracy requirements to ensure that the clamp exactly meets your needs.

  • Fast quote —— We promise to respond within 24 hours of receiving your enquiry with a detailed product quotation and delivery time

  • Virtual Demonstration ——Using advanced 3D modeling software, we can provide a virtual demonstration of the clamp, giving you a visual understanding of how it works


After-sale service



  • Lifelong technical support—— Whenever you encounter any technical problems during use, our after-sales team will respond quickly to provide solutions.

  • Quality Assurance—— We offer an industry-leading warranty period and rigorous quality testing of all products to ensure that every clamp meets the highest standards.

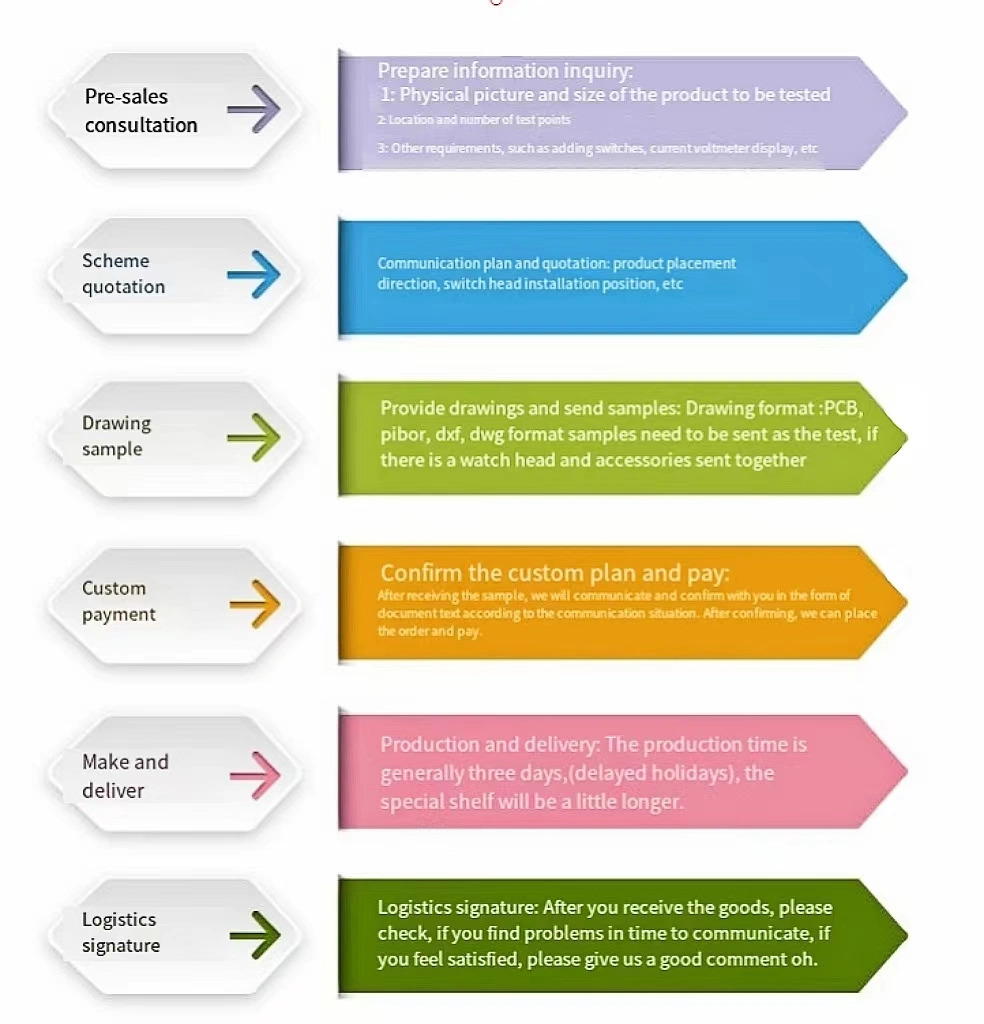

How to customize










1.Pre-sales consultation - Prepare materials for inquiry, including pictures and dimensions of the product to be tested, number of testing points, and any additional requirements such as switches or display screens.

2.Solution quotation - Communicate with us about your product placement direction, switch head installation position, etc., and we will provide you with a quote.

3.Drawing sample - Provide us with drawings in PCB, PIBOR, DXF, DWG format, along with samples that match the testing conditions (if applicable).

4.Custom payment - Confirm the customized solution and make payment after receiving the samples and communicating with us.

5.Production and shipping - Our production time is generally 3-5 workdays, but may vary depending on the complexity of the project.

6.Logistics receipt - Please inspect the goods upon delivery. If there are any issues, Please feel free to contact us.. If you're satisfied, Look forward to follow-up cooperation.






Packaging & Shipping





About packing:
We provide professional wooden box packing service, the use of durable wooden boxes, we can also provide customized wooden boxes according to the size and weight of the goods, for you to save space and cost.
About transportation:
We offer a wide range of logistics solutions that are fast, reliable and traceable throughout. Including DHL, UPS, TNT, FedEx and other well-known international express companies. Based on your specific needs, such as cargo value, weight, destination and time urgency, we will tailor the optimal logistics strategy for you.
