china factory Fiber Glass Board Wave Soldering Jig PCBA test fixture manual welding fixture cnc service

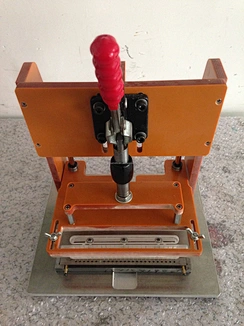

The products ideal for complex and Multi-Board test configurations in functional and in-circuit test applications. These fixtures utilize a 2 stage lid closing process involving a cam system to easily provide even vertical compression force across a high number of pins.

Product features:

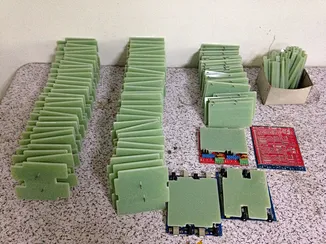

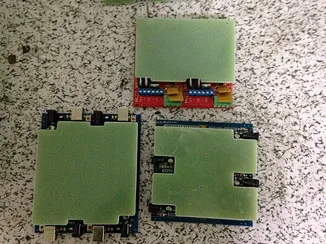

Wave fixture is a new type of PCB fixture for SMT processing, which is suitable for various PCB boards with SMD components on the solder surface of plug-in material.

Materials used:

·Imported bakelite

·Imported fiber materials

·Stainless steel material

·It is made of carbon fiber board (synthetic stone) with high temperature resistance of 350 ℃, no deformation, low heat conduction, small expansion, and can absorb furnace oil

Application effect:

·Saving manpower and improving efficiency

·Simplify production process and improve product quality

·Reduce the deformation caused by tin furnace

·Good dimensional stability

·Wide range of applications, automatic assembly of electronic components / manual insertion / solder paste screen printing / SMT surface mounting / infrared reflow soldering and online testing.

Pre-sales service:

• Customer demand analysis —— Understand your production process, workpiece material, machining accuracy requirements to ensure that the clamp exactly meets your needs.


• Fast quote —— We promise to respond within 24 hours of receiving your enquiry with a detailed product quotation and delivery time


• Virtual Demonstration ——Using advanced 3D modeling software, we can provide a virtual demonstration of the clamp, giving you a visual understanding of how it works

After-sale service

• Lifelong technical support—— Whenever you encounter any technical problems during use, our after-sales team will respond quickly to provide solutions.


• Quality Assurance—— We offer an industry-leading warranty period and rigorous quality testing of all products to ensure that every clamp meets the highest standards.

About packing:
We provide professional wooden box packing service, the use of durable wooden boxes, we can also provide customized wooden boxes according to the size and weight of the goods, for you to save space and cost.
About transportation:
We offer a wide range of logistics solutions that are fast, reliable and traceable throughout. Including DHL, UPS, TNT, FedEx and other well-known international express companies. Based on your specific needs, such as cargo value, weight, destination and time urgency, we will tailor the optimal logistics strategy for you.
