cnc engraving machine for pebble wave soldering pollet pcba fixture

High efficiency Wave Soldering Fixtures cnc machine for PCB electronic jig service

minimum order
1 piece
Quantity:
$50.00 - $50.00 / piece
Contact Now
add to cart
  • CNC Machining or Not:Cnc Machining
  • Type:Broaching, Laser Machining, Milling
  • Material Capabilities:Aluminum, Hardened Metals, Precious Metals, Steel Alloys
  • Micro Machining or Not:Micro Machining
  • Place of Origin:Guangdong, China
  • Brand Name:New meto
  • Product name:wave soldering jigs
  • Service:One-Stop Service
  • Equipment:CNC Machining Centres
  • MOQ:1 Piece
  • Logo:Accept Custom Logo
  • Certification:ISO9001:2015
  • Application:Medical,Electronics
  • QC Control:100% QC Steps Inspection
  • Lead time:3-7 Working Days
  • Package:carton

Product Description

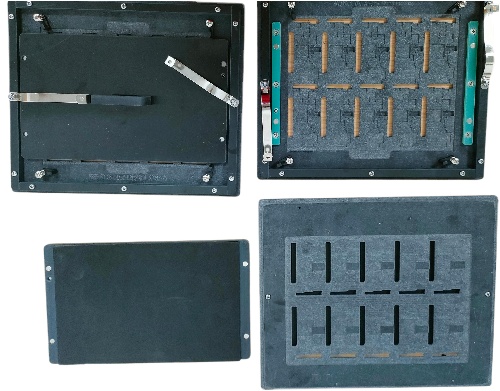

Wave Soldering Fixtures are a special tool used in the wave soldering process in the electronics manufacturing industry whose primary function is to secure, support and protect the printed circuit board (PCB) and its components during the wave soldering process.



Design PCB Test Fixtures to Your Needs

Our robust and reliable designs come in a variety of sizes and footprints to suit your PCB scale and test application. Fixtures can accommodate standard PCB footprints such as Raspberry Pi and other single-board computers and fully custom PCBs. Most designs offer a bed of nails interface, but other interfaces are available. We specialize in designing and manufacturing custom test fixtures to meet unique test challenges.




The main functions of wave soldering fixtures include:


  • Prevent PCB deformation: In high-temperature welding environments, the wave soldering fixture can support the PCB, avoiding warping and deformation caused by thermal expansion and contraction effects, ensuring the flatness of the PCB and improving welding quality.

  • Protecting SMD components.

  • Improving production efficiency: For small-sized PCBs, fixtures can support multiple boards at once, and the production efficiency of wave soldering can be improved through panel splicing.

  • Standardized production process: Fixtures can ensure accurate positioning of PCBs in wave soldering machines, making the welding process more standardized and reducing human errors.

  • Protecting special components.







Packaging & Shipping





About packing:
We provide professional wooden box packing service, the use of durable wooden boxes, we can also provide customized wooden boxes according to the size and weight of the goods, for you to save space and cost.
About transportation:
We offer a wide range of logistics solutions that are fast, reliable and traceable throughout. Including DHL, UPS, TNT, FedEx and other well-known international express companies. Based on your specific needs, such as cargo value, weight, destination and time urgency, we will tailor the optimal logistics strategy for you.














Company Information


New meto Industrial (Shenzhen) Co., Ltd. was established in 2015.Main Engage in production Various electronic test fixtures, including BGA test fixtures, PCBA test fixtures,etc.

Through advanced manufacturing technology and high-quality materials, New Mitou fixtures ensure stable test performance and accurate test results, providing customers with reliable test support.



All engineers and technicians have over 10years related experience. Our products are exported to more than 30 countries and regions around the world,Xinmitu are certificated by ISO 9001 - 2015. and strictly standardized production, the quality of products has a strict craftsman's pursuit.

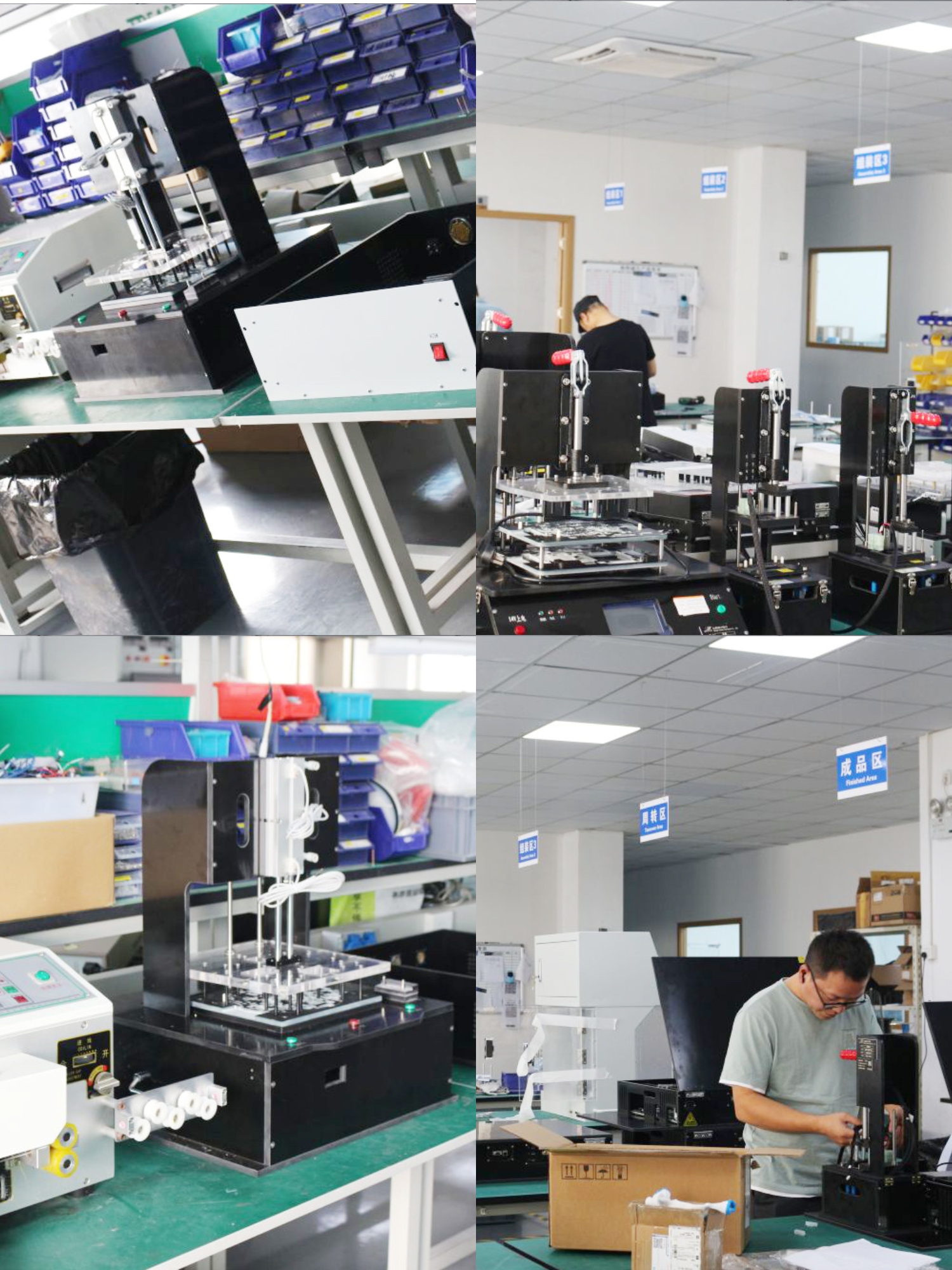

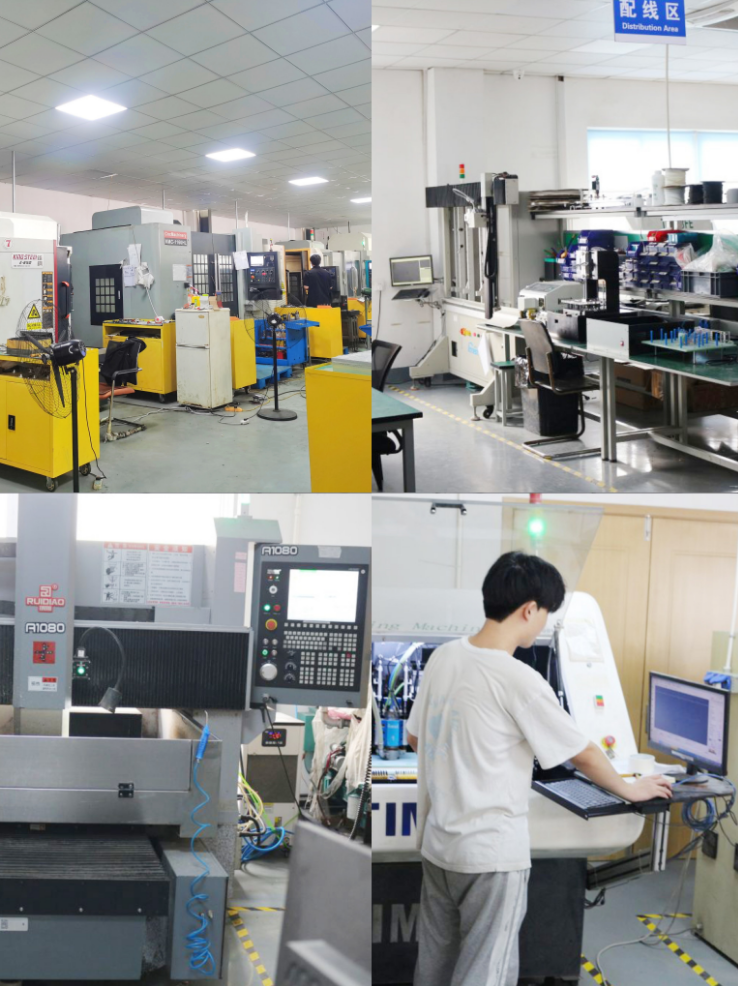

Our Factory







Our Services


Pre-sales service:



  • Customer demand analysis —— Understand your production process, workpiece material, machining accuracy requirements to ensure that the clamp exactly meets your needs.

  • Fast quote —— We promise to respond within 24 hours of receiving your enquiry with a detailed product quotation and delivery time

  • Virtual Demonstration ——Using advanced 3D modeling software, we can provide a virtual demonstration of the clamp, giving you a visual understanding of how it works


After-sale service



  • Lifelong technical support—— Whenever you encounter any technical problems during use, our after-sales team will respond quickly to provide solutions.

  • Quality Assurance—— We offer an industry-leading warranty period and rigorous quality testing of all products to ensure that every clamp meets the highest standards.

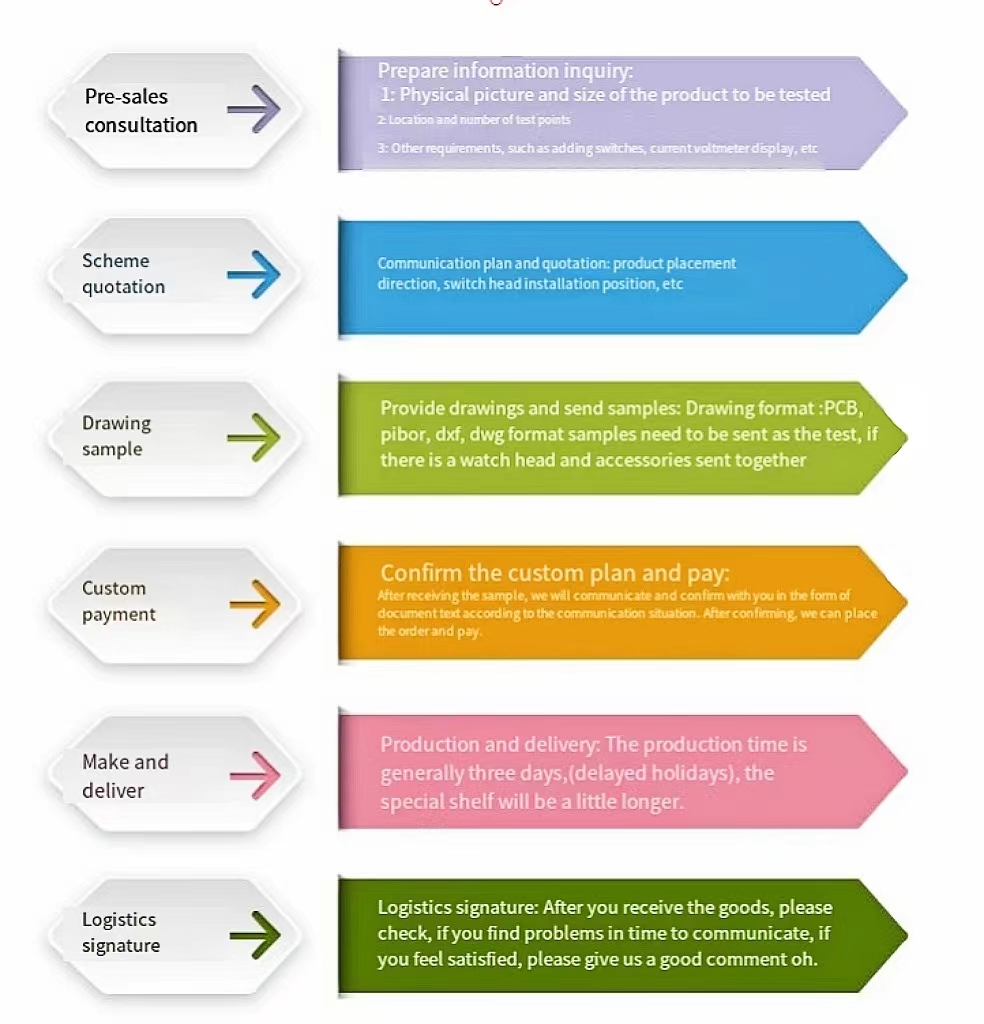

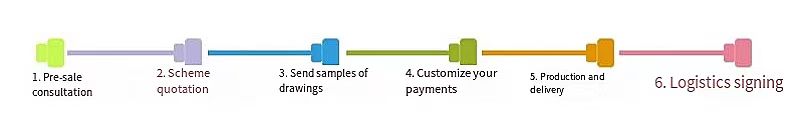

How to customize
