test fixture jigs

Low prices China Supplier Electronic Products Pcb/Pcba motherBoard function Test Fixture Jigs

548
minimum order
1 piece
Quantity:
$100.00 - $100.00 / piece
Contact Now
add to cart
  • CNC Machining or Not:Cnc Machining
  • Type:Other Machining Services
  • Material Capabilities:Aluminum, Precious Metals, Hardened Metals
  • Micro Machining or Not:Micro Machining
  • Place of Origin:Guangdong, China
  • Brand Name:Newmeto

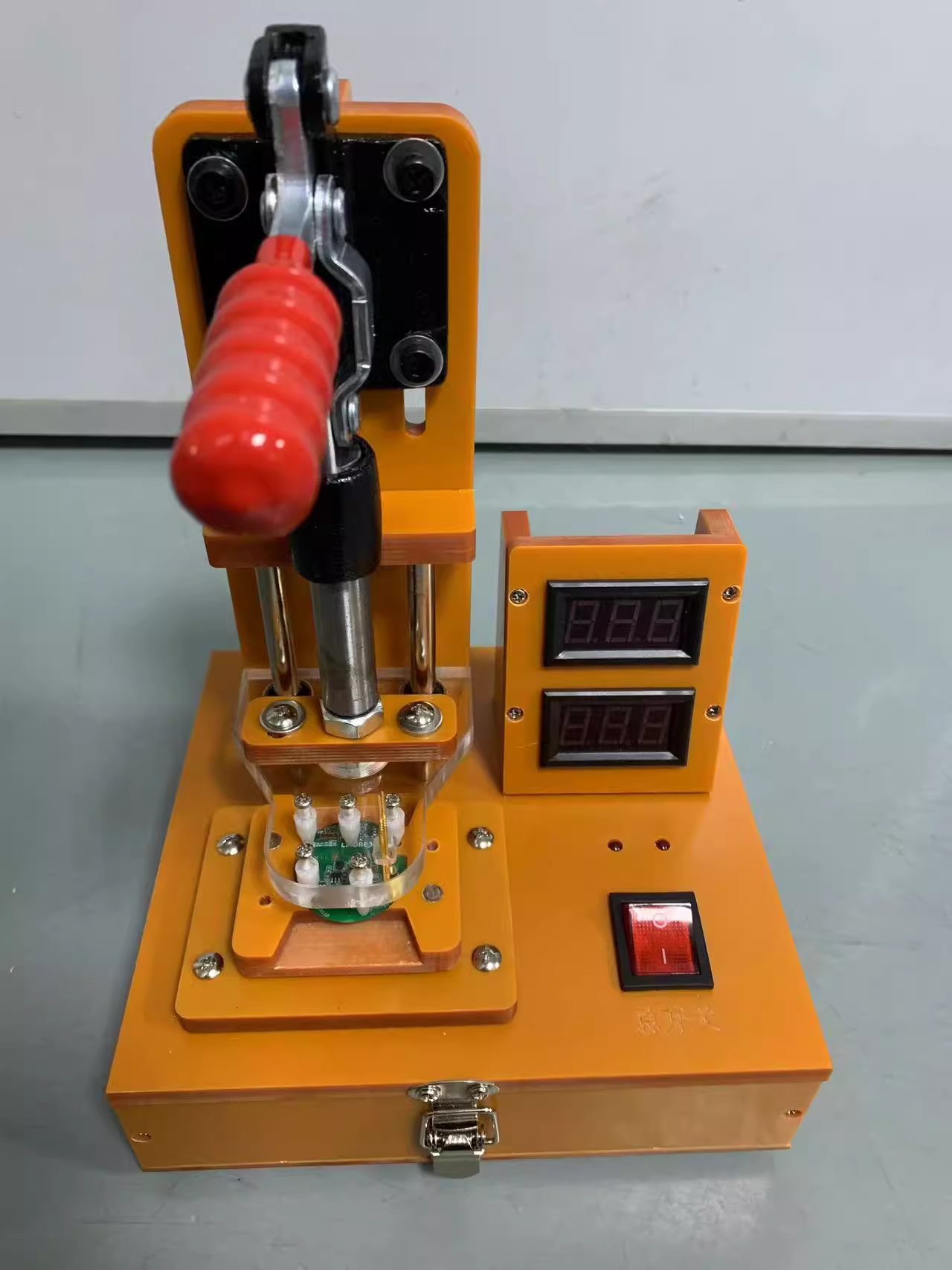

  • Product name:PCB test fixture
  • Service:One-Stop Service
  • Application:Medical,Auto,Electronic
  • Drawing Format:DWG/CAD/DXF/gerber
  • MOQ:1 Pcs
  • Certification:ISO9001:2015
  • Logo:Accept Custom Logo
  • Packing:Carton
  • QC Control:100% QC Steps Inspection

Product Description

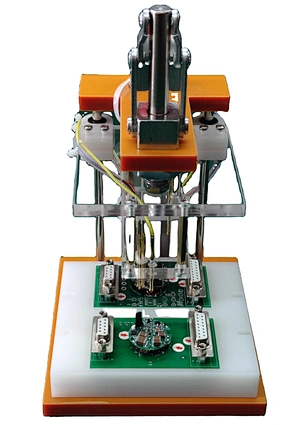

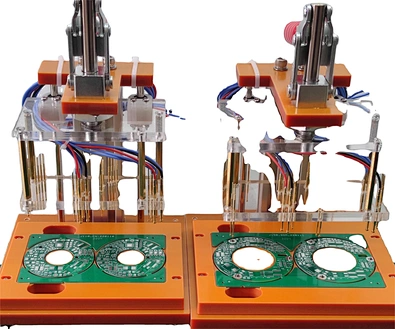

The products ideal for complex and Multi-Board test configurations in functional and in-circuit test applications. These fixtures utilize a 2 stage lid closing process involving a cam system to easily provide even vertical compression force across a high number of pins.


Design PCB Test Fixtures to Your Needs

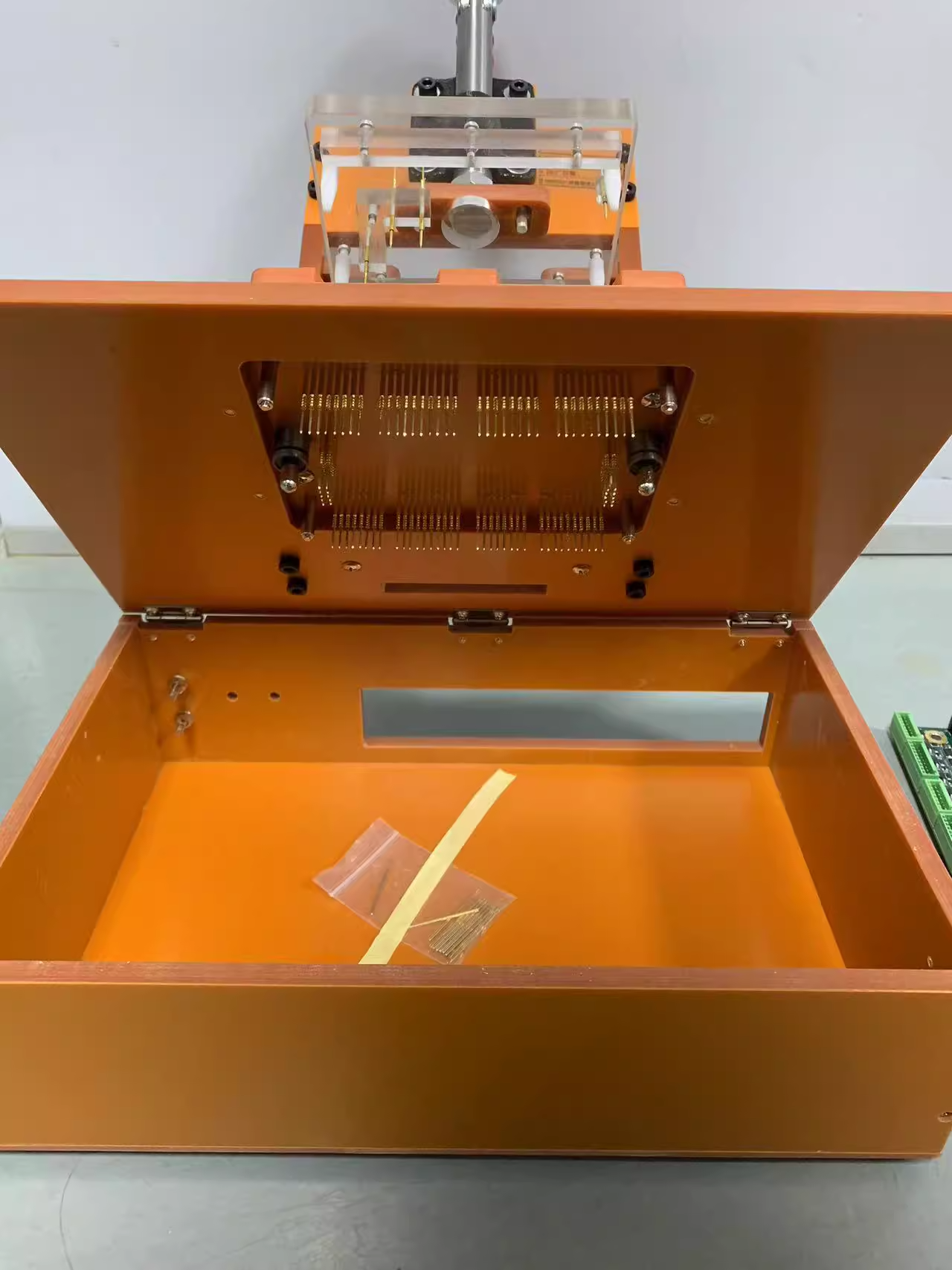

Our robust and reliable designs come in a variety of sizes and footprints to suit your PCB scale and test application. Fixtures can accommodate standard PCB footprints such as Raspberry Pi and other single-board computers and fully custom PCBs. Most designs offer a bed of nails interface, but other interfaces are available. We specialize in designing and manufacturing custom test fixtures to meet unique test challenges.


Company Information

New meto Industrial (Shenzhen) Co., Ltd. was established in 2015.Main Engage in production Various electronic test fixtures, including BGA test fixtures, PCBA test fixtures,etc.

Through advanced manufacturing technology and high-quality materials, New Mitou fixtures ensure stable test performance and accurate test results, providing customers with reliable test support.

All engineers and technicians have over 10years related experience. Our products are exported to more than 30 countries and regions around the world,Xinmitu are certificated by ISO 9001 - 2015. and strictly standardized production, the quality of products has a strict craftsman's pursuit.

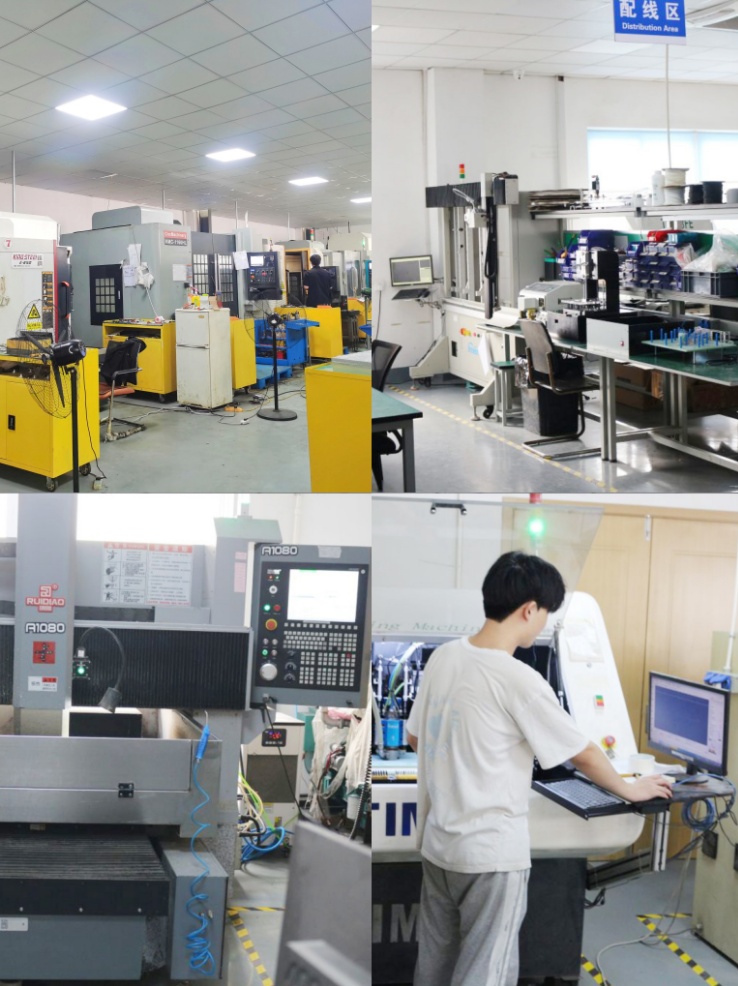

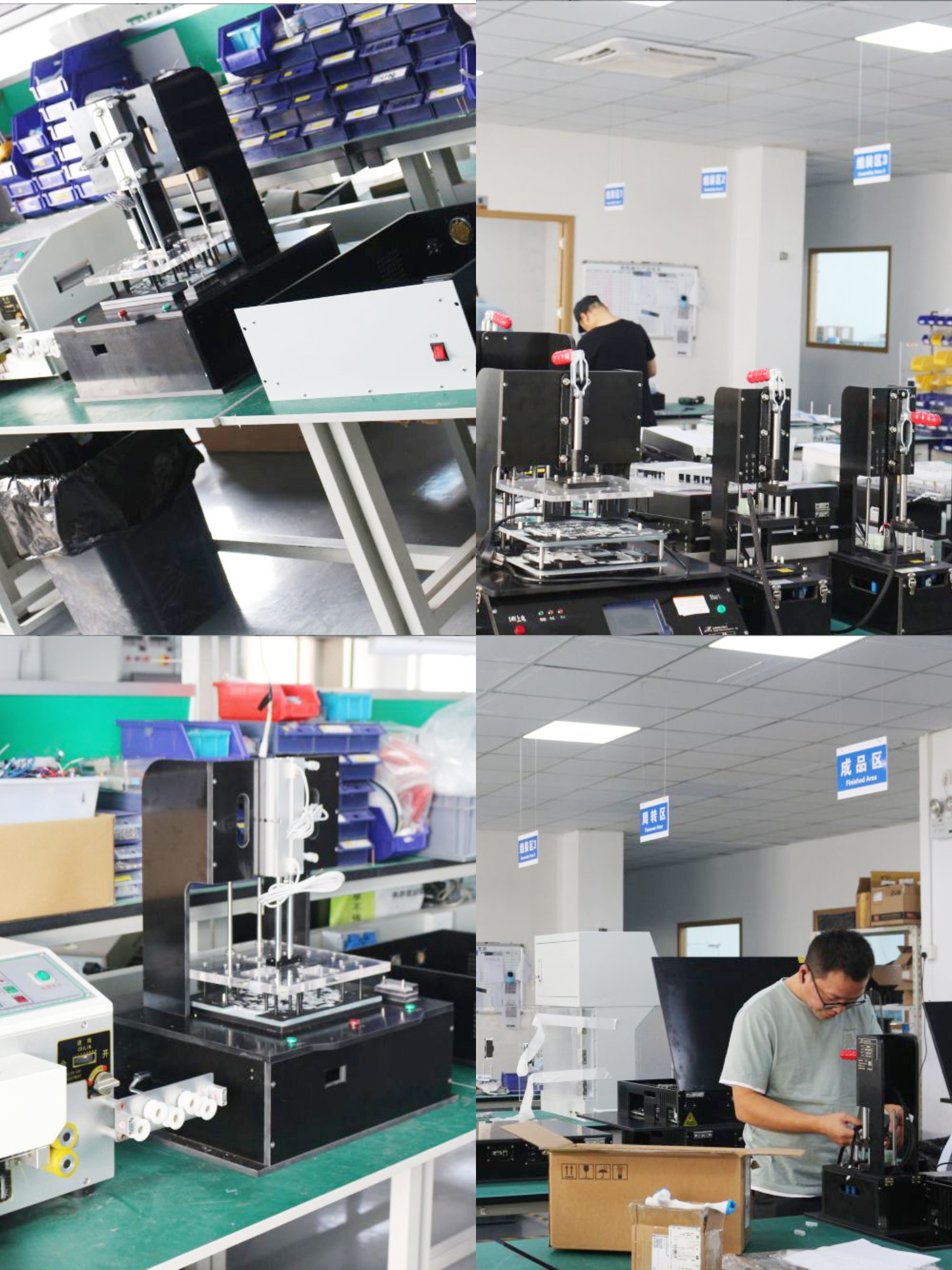

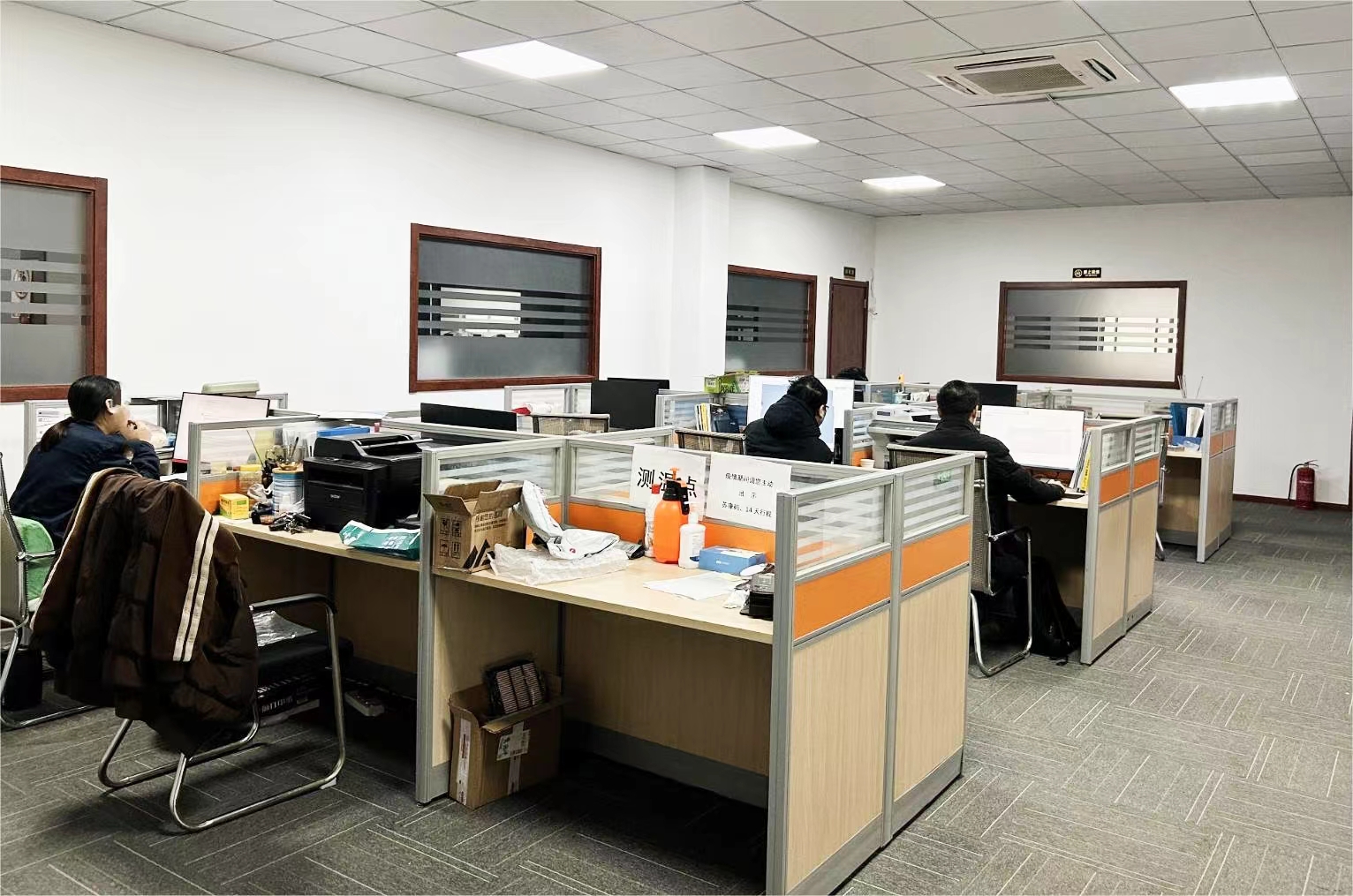

Our Factory



Our Services


Pre-sales service:



  • Customer demand analysis —— Understand your production process, workpiece material, machining accuracy requirements to ensure that the clamp exactly meets your needs.

  • Fast quote —— We promise to respond within 24 hours of receiving your enquiry with a detailed product quotation and delivery time

  • Virtual Demonstration ——Using advanced 3D modeling software, we can provide a virtual demonstration of the clamp, giving you a visual understanding of how it works

    •

After-sale service


  • Lifelong technical support—— Whenever you encounter any technical problems during use, our after-sales team will respond quickly to provide solutions.

  • Quality Assurance—— We offer an industry-leading warranty period and rigorous quality testing of all products to ensure that every clamp meets the highest standards.

    •

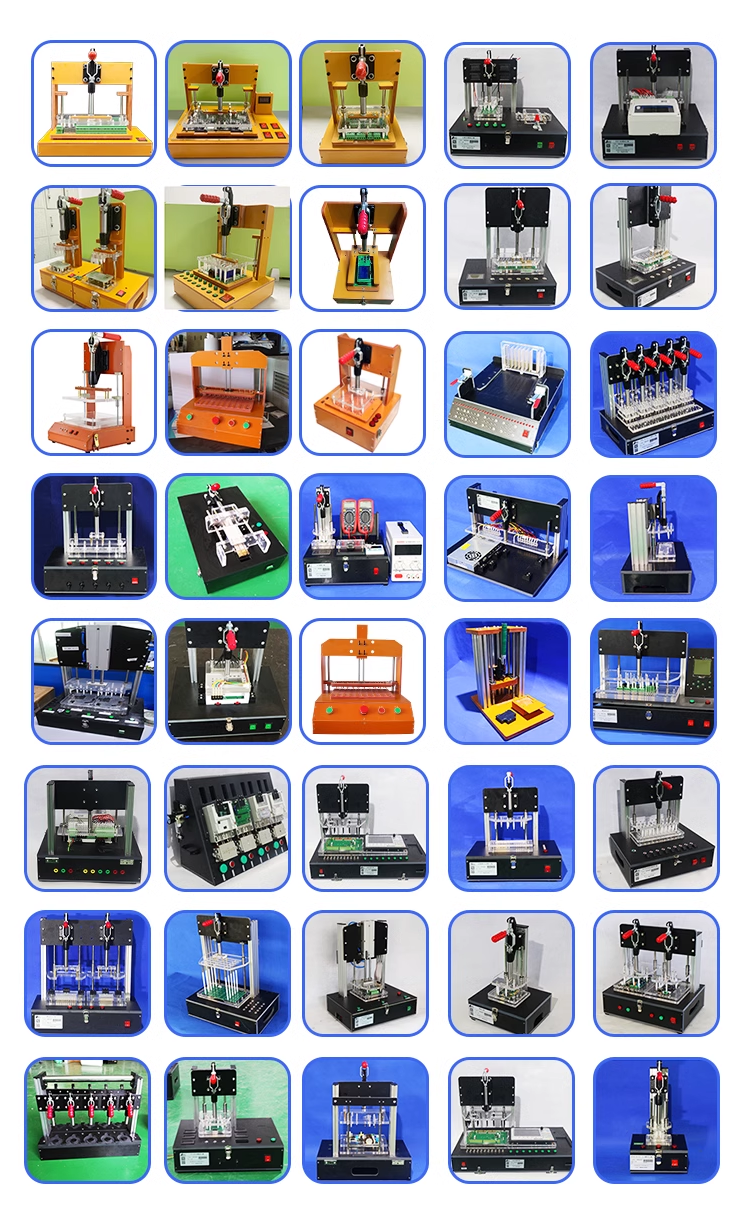

Our products


Mainly engaged in all kinds of electronic test fixtures, including BGA test fixtures, PCBA test fixtures, electronic parts test fixtures, wave soldering furnace fixtures, dipping tin fixtures, SMT reflow soldering fixtures, spray paint fixtures, assembly fixtures, hardware parts processing, plastic parts machining, pneumatic and manual non-standard equipment design and manufacturing. Synthetic stone parts, glass fiber parts, POM parts, ABS parts, PEEK parts, bakelite parts, aluminum alloy parts and other processing.

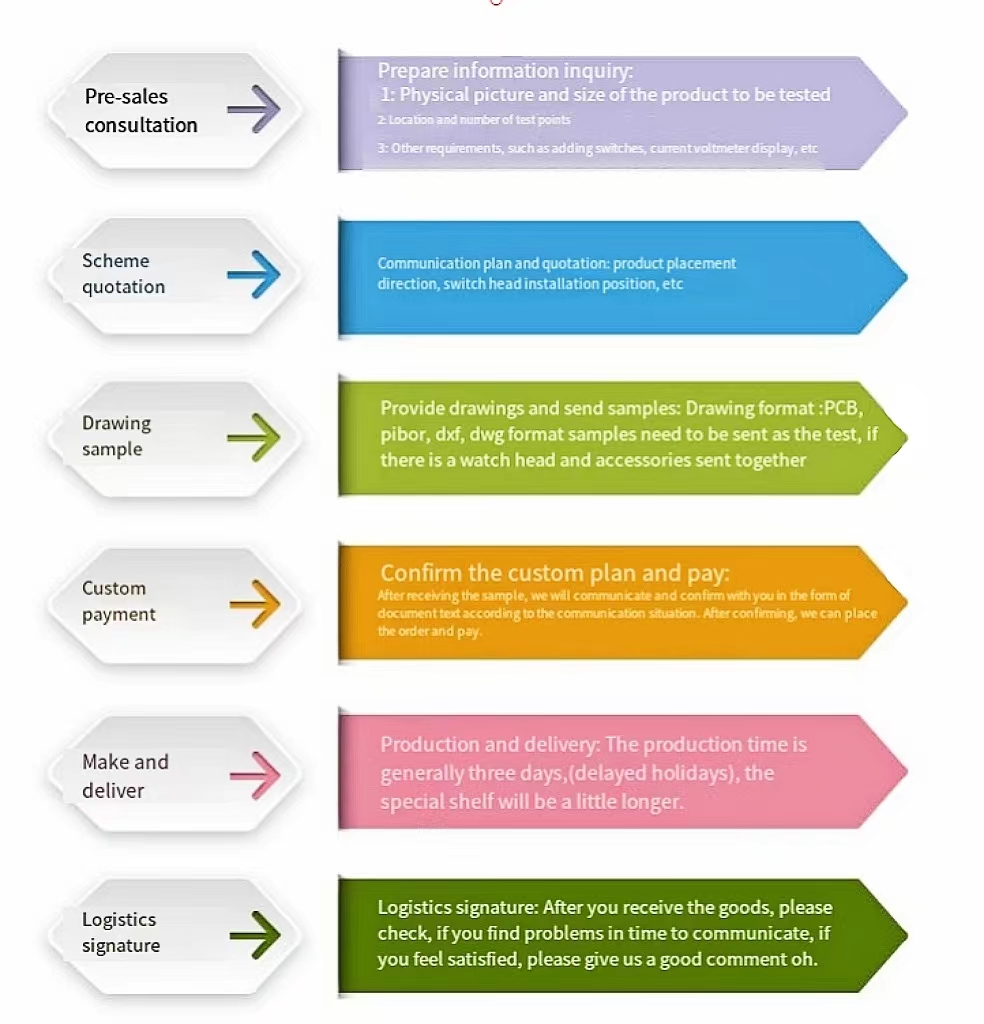

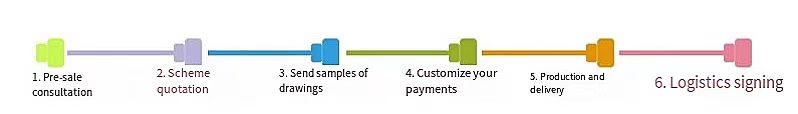

How to customize
