High quality Wave soldering fixture PCBA test fixture manual welding fixture cnc

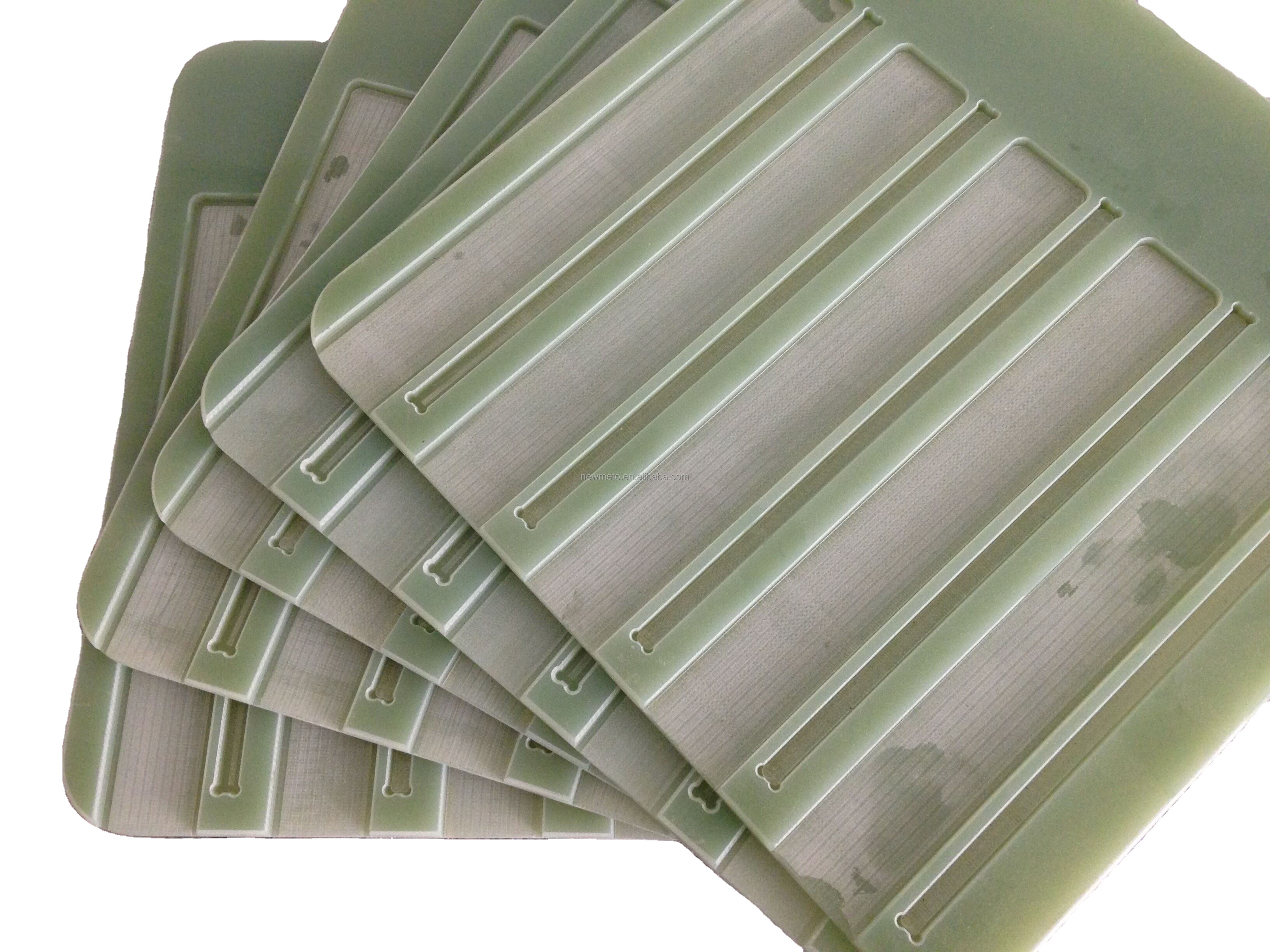

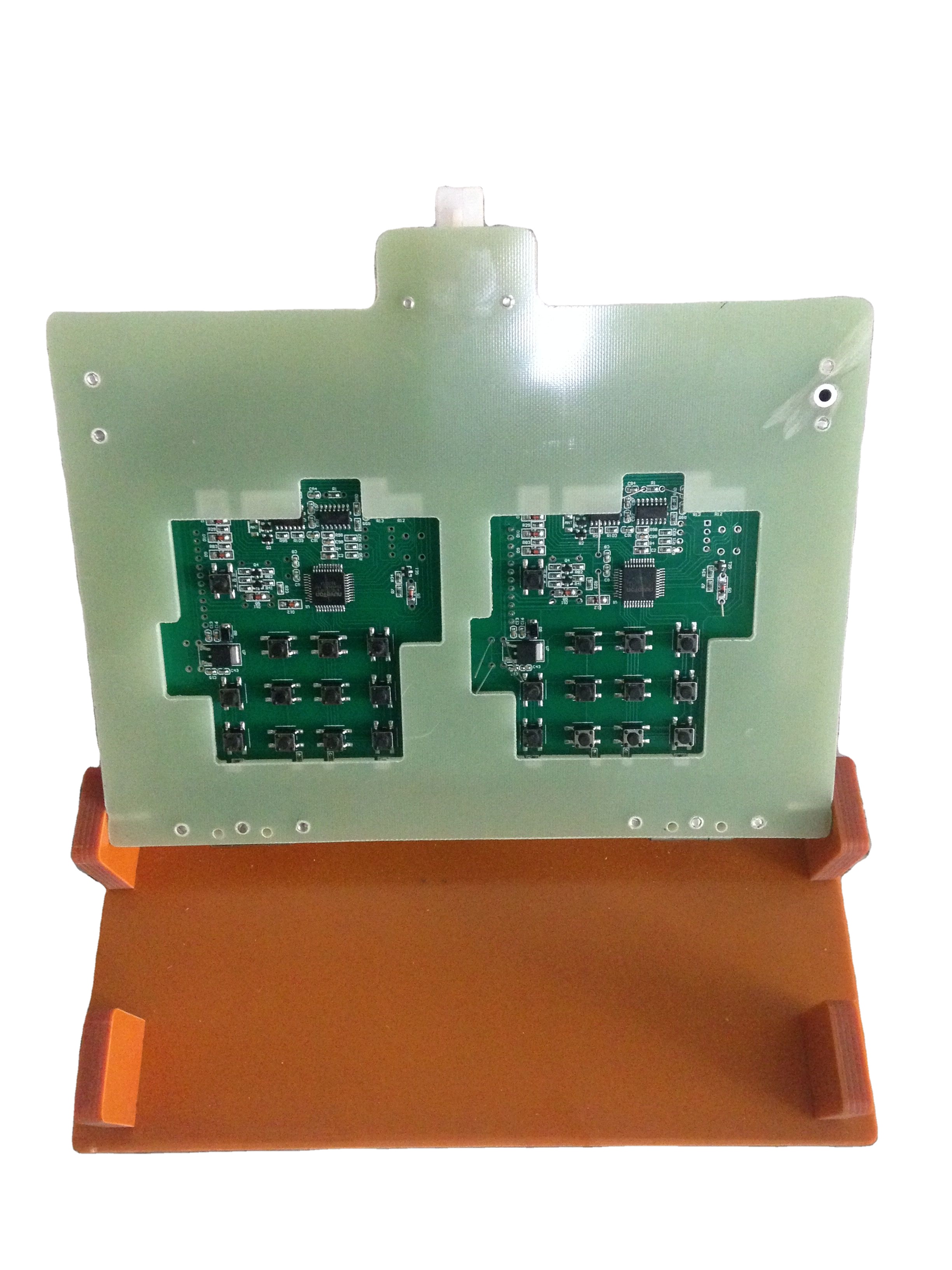

Fiber Glass Board Wave Soldering Jig Wave soldering fixture PCBA test fixture manual welding fixture

minimum order
1 piece
Quantity:
$50.00 - $50.00 / piece
Contact Now
add to cart
  • CNC Machining or Not:Cnc Machining
  • Type:Broaching, DRILLING, Laser Machining, Milling
  • Material Capabilities:Aluminum, Hardened Metals, Steel Alloys
  • Micro Machining or Not:Micro Machining
  • Place of Origin:Guangdong, China
  • Brand Name:Newmeto
  • Product name:Wave soldering fixture
  • Service:One-Stop Service
  • Application:Electronic
  • OEM/ODM:Accecpted
  • MOQ:1 Pcs
  • Logo:Accept Custom Logo
  • Certification:ISO9001:2015
  • Packing:Wooden Box
  • QC Control:100% QC Steps Inspection
  • Lead time:3-7days Depends

Product Description


The products ideal for complex and Multi-Board test configurations in functional and in-circuit test applications. These fixtures utilize a 2 stage lid closing process involving a cam system to easily provide even vertical compression force across a high number of pins.






Wave fixture is a new type of PCB fixture for SMT processing, which is suitable for various PCB boards with SMD components on the solder surface of plug-in material.


Product features:


Wave fixture is a new type of PCB fixture for SMT processing, which is suitable for various PCB boards with SMD components on the solder surface of plug-in material.





Materials used:


·Imported bakelite


·Imported fiber materials


·Stainless steel material


·It is made of carbon fiber board (synthetic stone) with high temperature resistance of 350 ℃, no deformation, low heat conduction, small expansion, and can absorb furnace oil





Application effect:


·Saving manpower and improving efficiency


·Simplify production process and improve product quality


·Reduce the deformation caused by tin furnace


·Good dimensional stability


·Wide range of applications, automatic assembly of electronic components / manual insertion / solder paste screen printing / SMT surface mounting / infrared reflow soldering and online testing.











Company Information


New meto Industrial (Shenzhen) Co., Ltd. was established in 2015.Main Engage in production Various electronic test fixtures, including BGA test fixtures, PCBA test fixtures,etc.

Through advanced manufacturing technology and high-quality materials, New Mitou fixtures ensure stable test performance and accurate test results, providing customers with reliable test support.



All engineers and technicians have over 10years related experience. Our products are exported to more than 30 countries and regions around the world,Xinmitu are certificated by ISO 9001 - 2015. and strictly standardized production, the quality of products has a strict craftsman's pursuit.

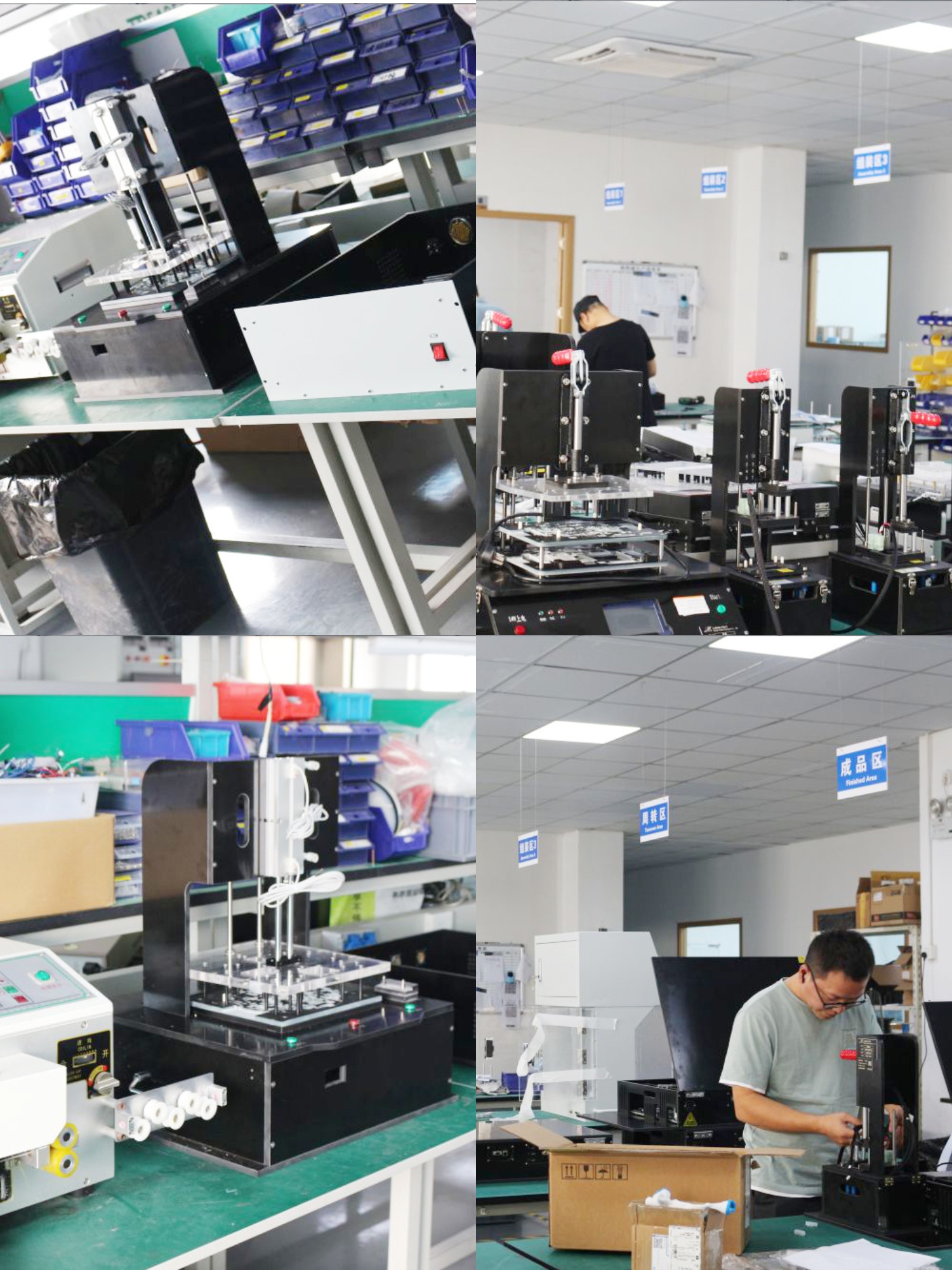

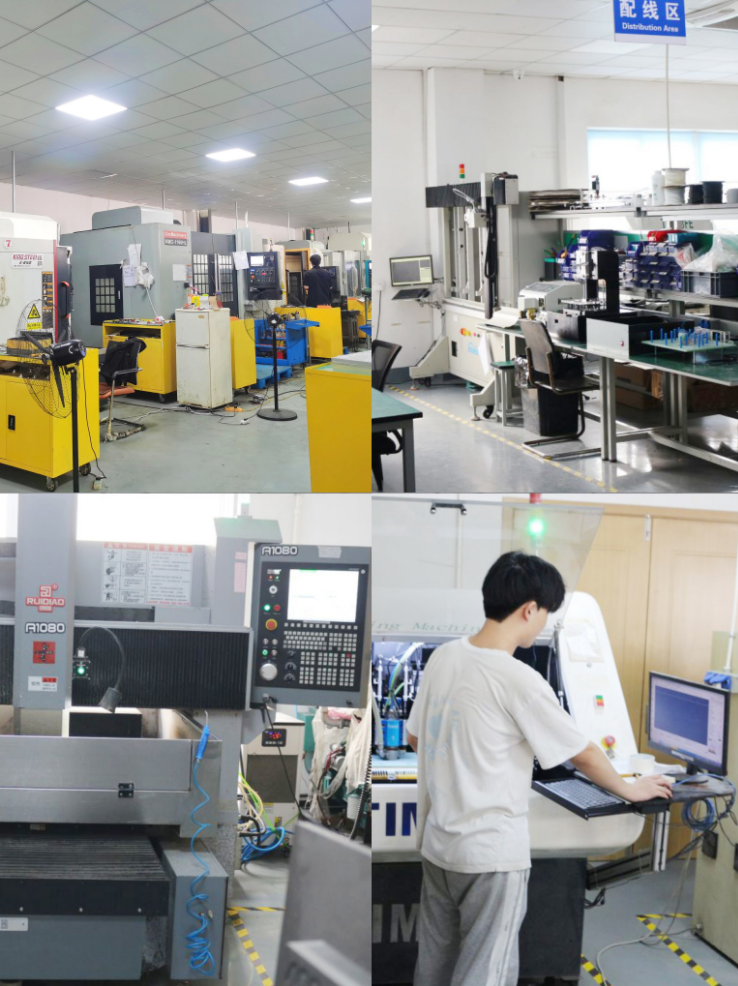

Our Factory







Our Services


Pre-sales service:



  • Customer demand analysis —— Understand your production process, workpiece material, machining accuracy requirements to ensure that the clamp exactly meets your needs.

  • Fast quote —— We promise to respond within 24 hours of receiving your enquiry with a detailed product quotation and delivery time

  • Virtual Demonstration ——Using advanced 3D modeling software, we can provide a virtual demonstration of the clamp, giving you a visual understanding of how it works


After-sale service



  • Lifelong technical support—— Whenever you encounter any technical problems during use, our after-sales team will respond quickly to provide solutions.

  • Quality Assurance—— We offer an industry-leading warranty period and rigorous quality testing of all products to ensure that every clamp meets the highest standards.








How to customize

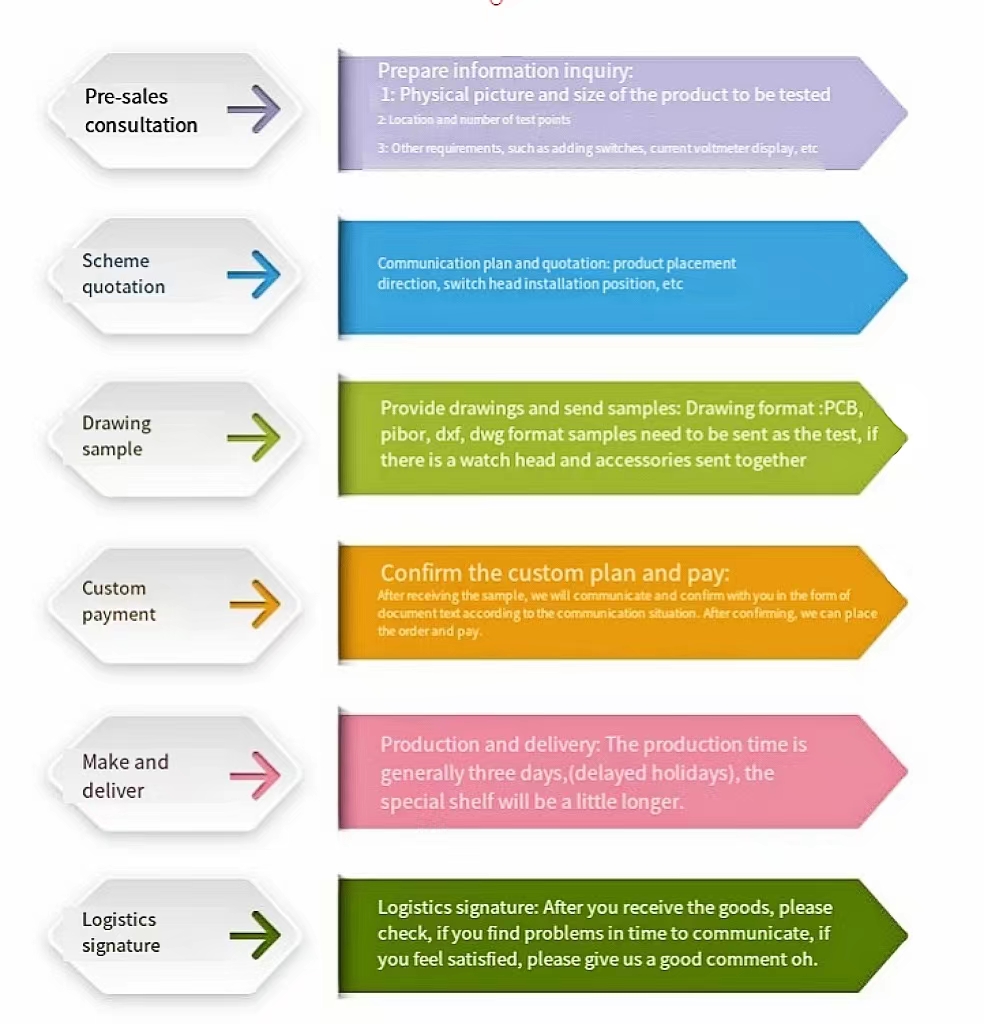

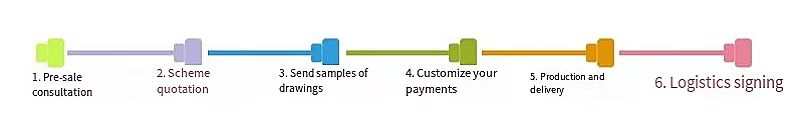

1.Pre-sales consultation - Prepare materials for inquiry, including pictures and dimensions of the product to be tested, number of testing points, and any additional requirements such as switches or display screens.

2.Solution quotation - Communicate with us about your product placement direction, switch head installation position, etc., and we will provide you with a quote.

3.Drawing sample - Provide us with drawings in PCB, PIBOR, DXF, DWG format, along with samples that match the testing conditions (if applicable).

4.Custom payment - Confirm the customized solution and make payment after receiving the samples and communicating with us.

5.Production and shipping - Our production time is generally 3-5 workdays, but may vary depending on the complexity of the project.

6.Logistics receipt - Please inspect the goods upon delivery. If there are any issues, Please feel free to contact us.. If you're satisfied, Look forward to follow-up cooperation.
