china factory customize high quality test fixture cog test jigs for lcd oled test

• The COG (Chip On Glass) screen testing fixture is a device specifically designed for testing COG structured display screens. COG technology refers to the process of directly binding driver ICs onto glass substrates, which is commonly used in liquid crystal displays (LCDs) and organic light-emitting diode displays (OLEDs) to achieve thinner and more compact screen designs.

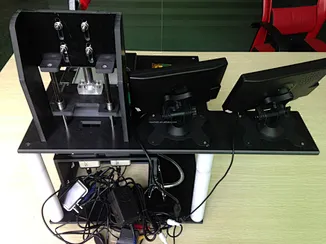

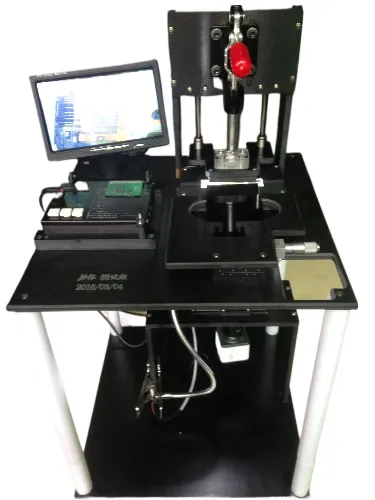

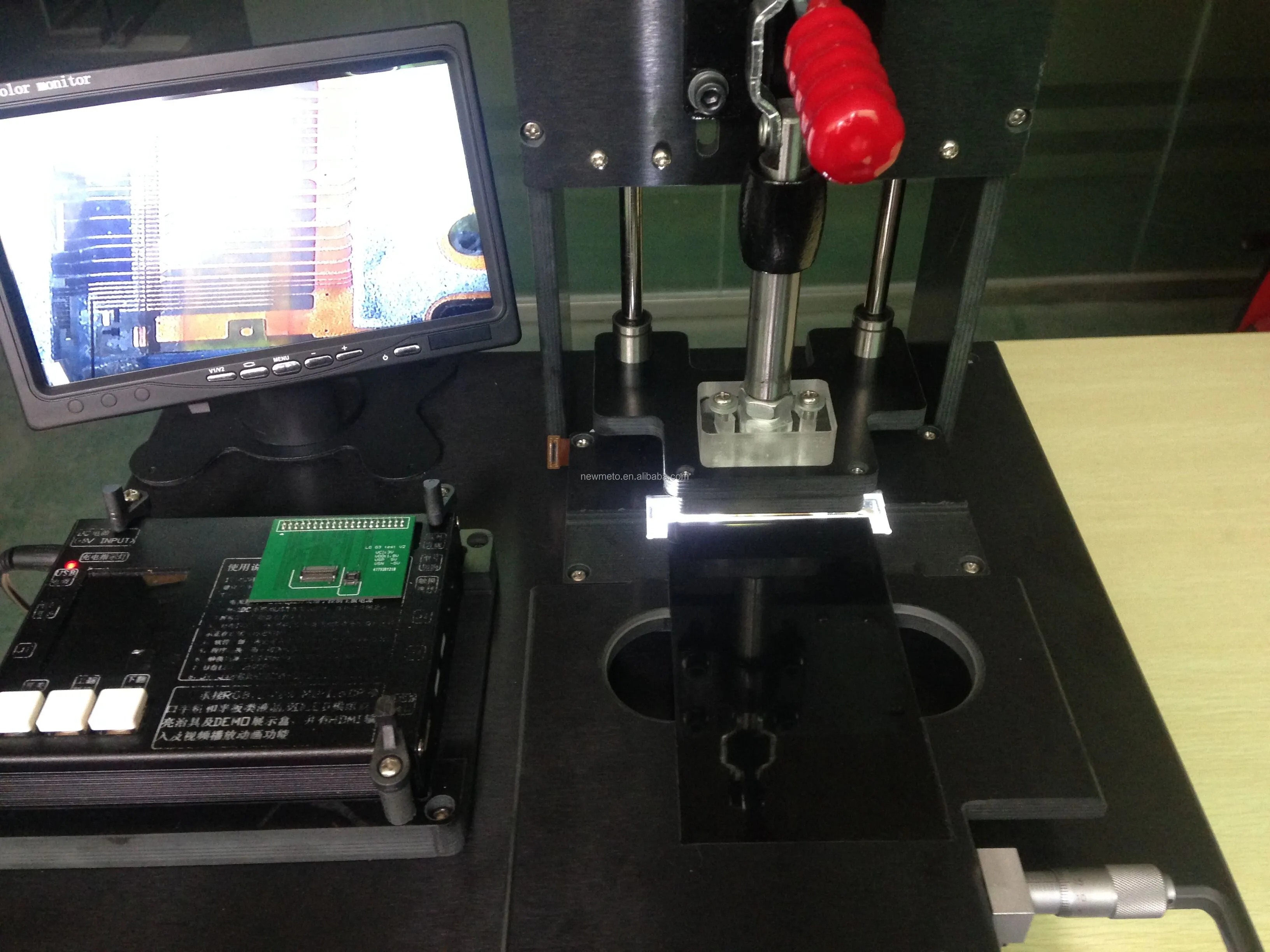

• The LCD screen test fixture comprises a test bench, a test circuit board arranged on the test bench, and a clamping mechanism rotationally arranged on the test bench,. During the test, the flip clamping mechanism is used to clamp the test LCD screen and the test circuit board to realize the electrical connection test.

The test method of the LCD screen test fixture includes the following steps:

1 )The clamping plate of the clamping mechanism is turned over and opened on the test bench;

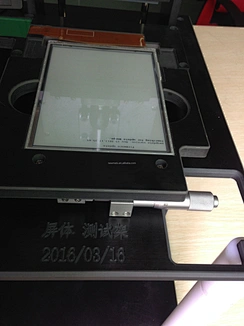

2) The LCD screen to be tested is placed on the test bench, the circuit board of the LCD screen to be tested is correspondingly placed on the test circuit board, and the contacts on the circuit board of the LCD screen to be tested are one by one corresponding to the test points on the test circuit board

3)The clamp plate is turned over and covered on the test bench and pressed on the top of the circuit board of the LCD screen to be tested and the test circuit board;

4)The contact of the circuit board of the LCD screen to be tested and the measuring point on the circuit board to be tested are connected by clamping the clamping plate, and the test signal is transmitted to realize the test work.

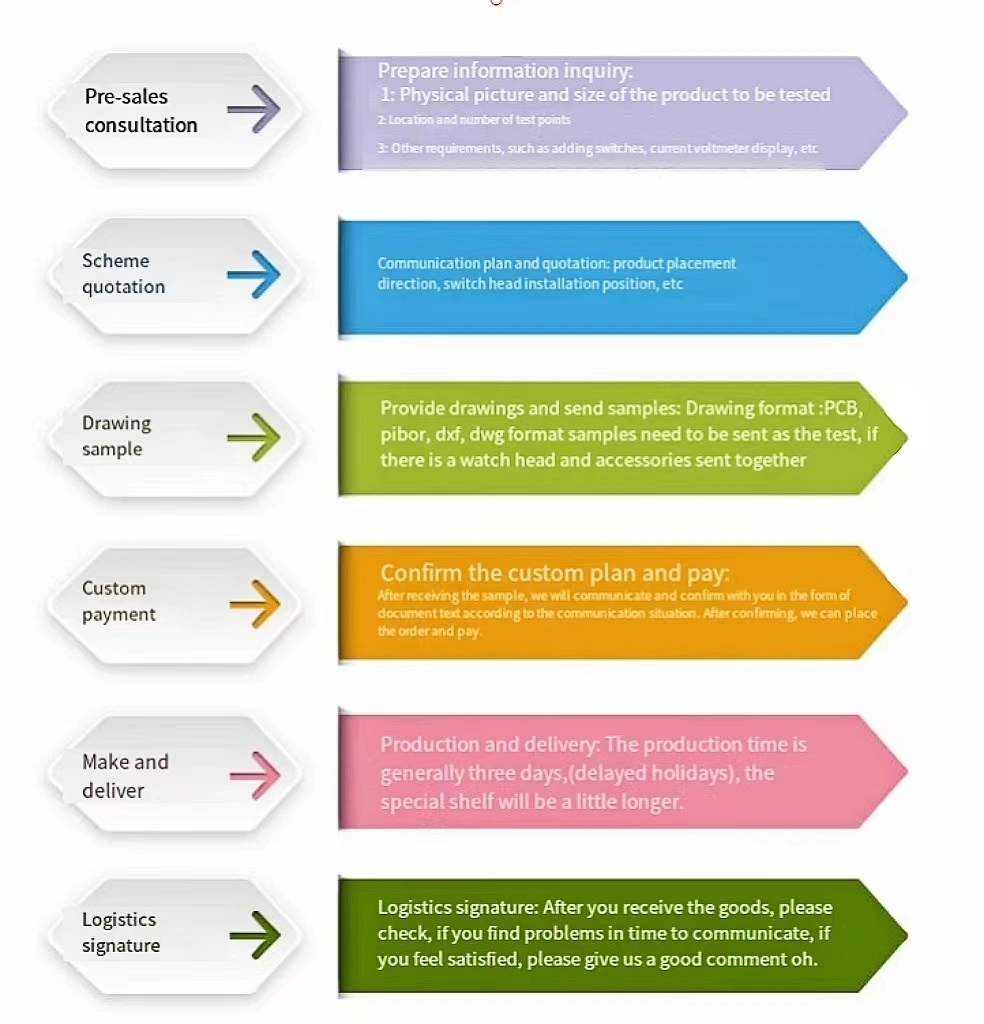

Pre-sales service:

• Customer demand analysis —— Understand your production process, workpiece material, machining accuracy requirements to ensure that the clamp exactly meets your needs.


• Fast quote —— We promise to respond within 24 hours of receiving your enquiry with a detailed product quotation and delivery time


• Virtual Demonstration ——Using advanced 3D modeling software, we can provide a virtual demonstration of the clamp, giving you a visual understanding of how it works

After-sale service

• Lifelong technical support—— Whenever you encounter any technical problems during use, our after-sales team will respond quickly to provide solutions.


• Quality Assurance—— We offer an industry-leading warranty period and rigorous quality testing of all products to ensure that every clamp meets the highest standards.

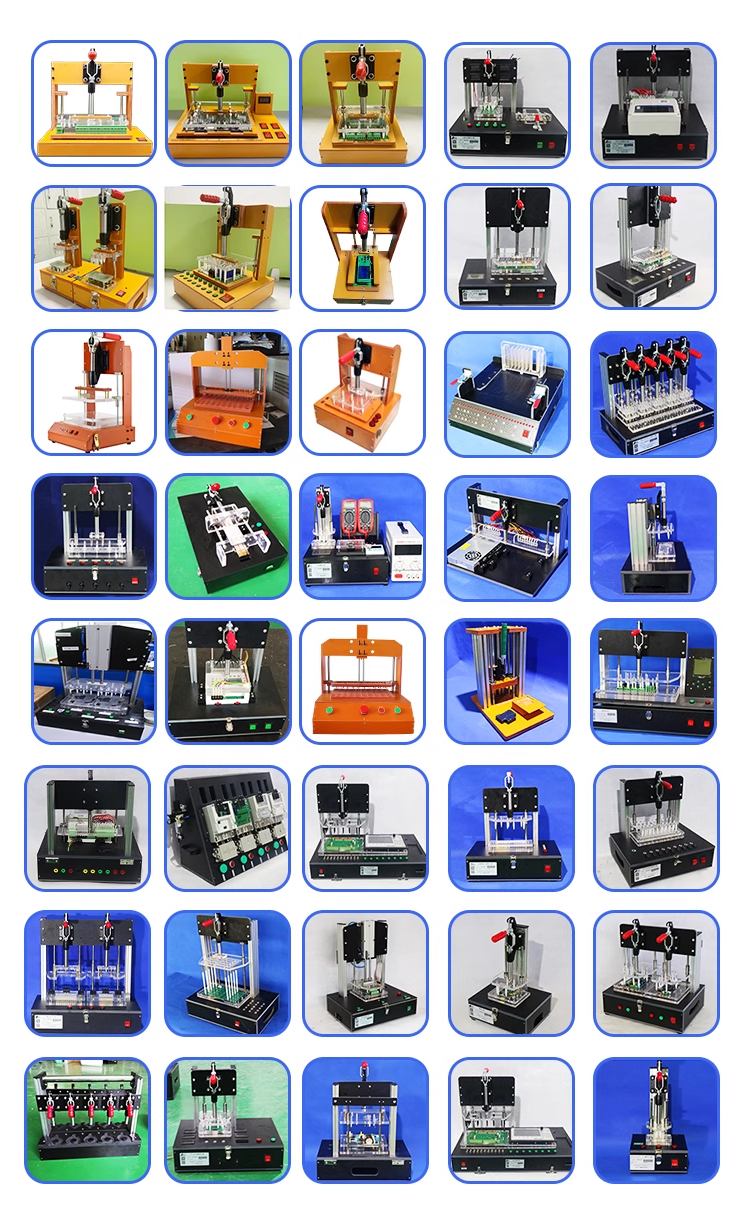

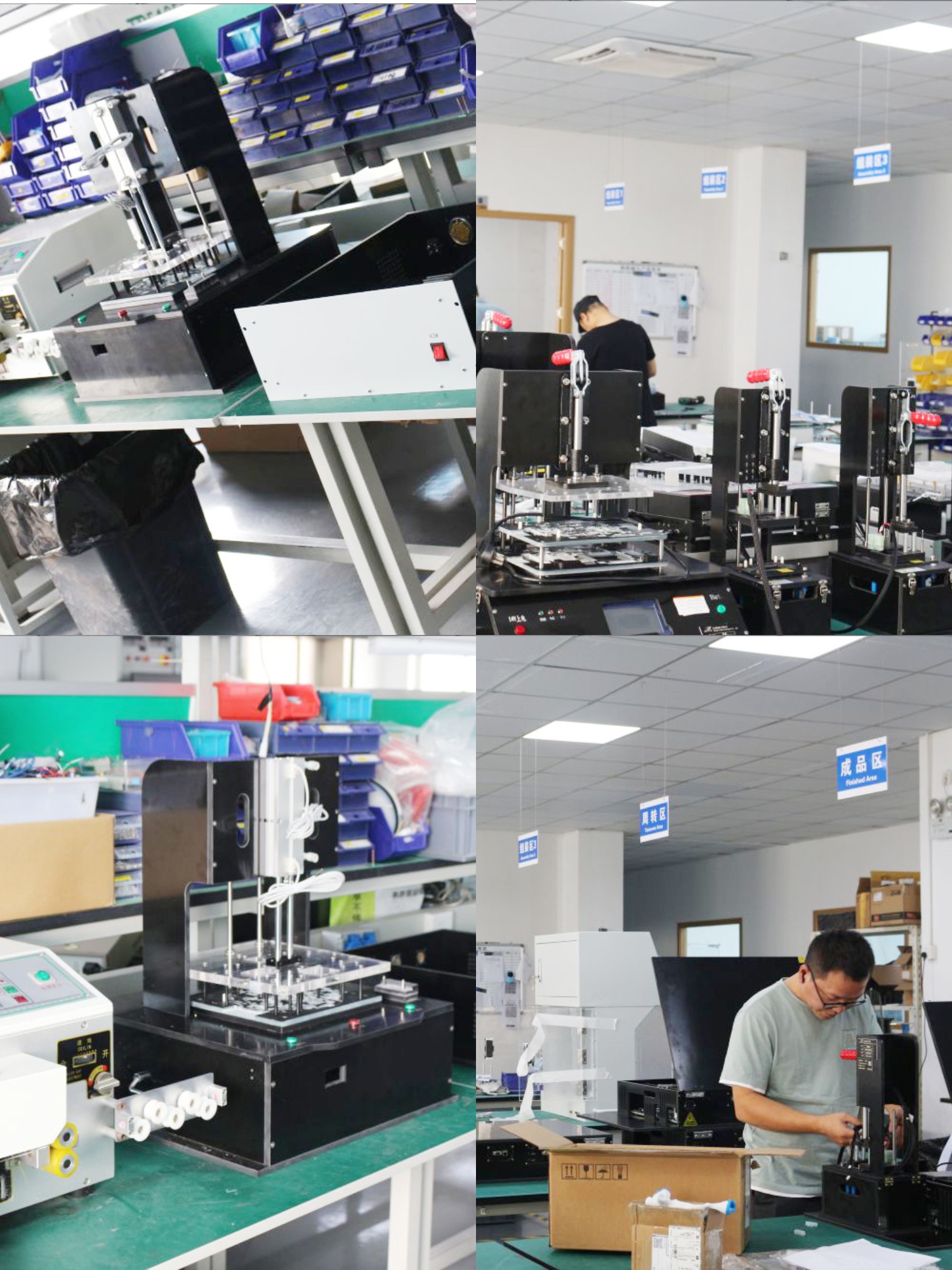

Mainly engaged in all kinds of electronic test fixtures, including BGA test fixtures, PCBA test fixtures, electronic parts test fixtures, wave soldering furnace fixtures, dipping tin fixtures, SMT reflow soldering fixtures, spray paint fixtures, assembly fixtures, hardware parts processing, plastic parts machining, pneumatic and manual non-standard equipment design and manufacturing. Synthetic stone parts, glass fiber parts, POM parts, ABS parts, PEEK parts, bakelite parts, aluminum alloy parts and other processing.

New meto—Your ideal test clamp partner

1.Deep experience: For nearly 10 years, we have been committed to the design, manufacturing and innovation of test fixtures, and have accumulated a wealth of industry experience and technical knowledge.

2.Personalization: We have a strong R&D team that can provide tailor-made test clamp solutions according to your specific needs.

3.Technological innovation: Investing in research and development, we constantly explore new materials and processes to ensure that each product represents the highest level of the industry.

4.Worry-free after-sales: We provide a full range of pre-sales consultation, sales cooperation and after-sales maintenance services to ensure that your experience in the entire cooperation process is impeccable.

5.Quality certification: Our products have passed a number of international certifications such as ISO and CE, and the quality is guaranteed and trustworthy.

6.Customer praise: Customers from all over the world speak highly of our products and services, and their satisfaction is our biggest motivation.
